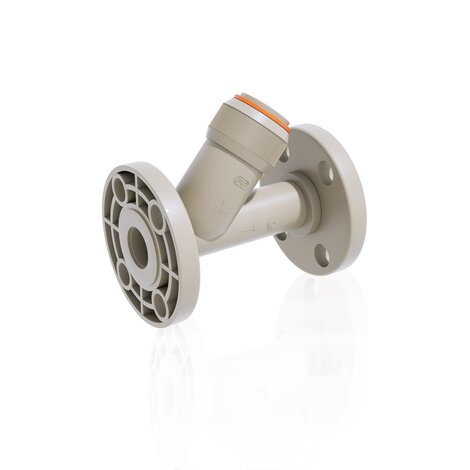

VRUOAM - ZAWÓR ZWROTNY KĄTOWY

Zawór zwrotny kątowy ze śrubunkami oraz kołnierzami ANSI B16.5 cl.150 #FF
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
Wróć do listy produktów

EPDM

Indeks - Wymiar Kategoria produktu System Materiał product.detail.attribute.Size DN PN Amax B F f H Masa
g/szt.
VRUOAM012E - - System PP-H System PP-H PP-H 1/2" 15 10 125 72 60 16 175 265
VRUOAM034E - - System PP-H System PP-H PP-H 3/4" 20 10 145 84 70 16 214 327
VRUOAM100E - - System PP-H System PP-H PP-H 1" 25 10 165 95 79 16 237 480
VRUOAM114E - - System PP-H System PP-H PP-H 1"1/4 32 10 190 111 89 16 253 795
VRUOAM112E - - System PP-H System PP-H PP-H 1"1/2 40 10 210 120 98 16 289 1065
VRUOAM200E - - System PP-H System PP-H PP-H 2" 50 10 240 139 121 19 333 1705

FKM

Indeks - Wymiar Kategoria produktu System Materiał product.detail.attribute.Size DN PN Amax B F f H Masa
g/szt.
VRUOAM012F - - System PP-H System PP-H PP-H 1/2" 15 10 125 72 60 16 175 265
VRUOAM034F - - System PP-H System PP-H PP-H 3/4" 20 10 145 84 70 16 214 327
VRUOAM100F - - System PP-H System PP-H PP-H 1" 25 10 165 95 79 16 237 480
VRUOAM114F - - System PP-H System PP-H PP-H 1"1/4 32 10 190 111 89 16 253 795
VRUOAM112F - - System PP-H System PP-H PP-H 1"1/2 40 10 210 120 98 16 289 1065
VRUOAM200F - - System PP-H System PP-H PP-H 2" 50 10 240 139 121 19 333 1705
  • Connection system for weld, threaded and flanged joints
  • No metal parts in contact with the fluid
  • Piston with counterweight able to work with high intensity fluid
  • Limited pressure drop. Only minimum back pressure is required for the hermetic seal
  • Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
