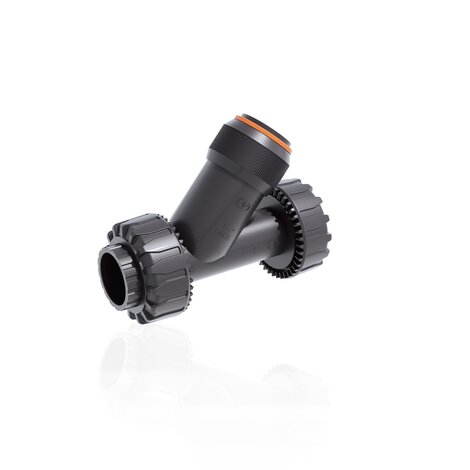

VRUIV - ZAWÓR ZWROTNY KĄTOWY
Zawór zwrotny kątowy ze śrubunkami z końcówkami mufowymi do wklejenia, metryczny
The VR is an angle seat check valve with weighted PVC piston that allows the passage of fluid in one direction only.

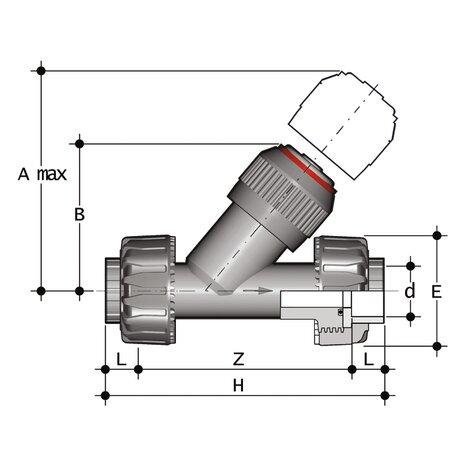

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | Amax | B | E | H | L | Z | Fig. | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUIV016E | - | - | System PVC-U | System PVC-U | PVC-U | 16 | 10 | 16 | 125 | 72 | 55 | 135 | 14 | 107 | A | 218 |
| VRUIV020E | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 16 | 125 | 72 | 55 | 135 | 16 | 103 | A | 226 |
| VRUIV025E | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 16 | 145 | 84 | 66 | 158 | 19 | 120 | A | 388 |
| VRUIV032E | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 16 | 165 | 95 | 75 | 176 | 22 | 132 | A | 606 |
| VRUIV040E | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 16 | 190 | 111 | 87 | 207 | 26 | 155 | A | 923 |
| VRUIV050E | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 16 | 210 | 120 | 100 | 243 | 31 | 181 | A | 1335 |
| VRUIV063E | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 16 | 240 | 139 | 120 | 298 | 38,2 | 221,6 | A | 2313 |
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | Amax | B | E | H | L | Z | Fig. | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUIV016F | - | - | System PVC-U | System PVC-U | PVC-U | 16 | 10 | 16 | 125 | 72 | 55 | 135 | 14 | 107 | A | 218 |
| VRUIV020F | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 16 | 125 | 72 | 55 | 135 | 16 | 103 | A | 226 |
| VRUIV025F | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 16 | 145 | 84 | 66 | 158 | 19 | 120 | A | 388 |
| VRUIV032F | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 16 | 165 | 95 | 75 | 176 | 22 | 132 | A | 606 |
| VRUIV040F | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 16 | 190 | 111 | 87 | 207 | 26 | 155 | A | 923 |
| VRUIV050F | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 16 | 210 | 120 | 100 | 243 | 31 | 181 | A | 1335 |
| VRUIV063F | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 16 | 240 | 139 | 120 | 298 | 38,2 | 221,6 | A | 2313 |
- Connection system for solvent weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
