VRUFV - ZAWÓR ZWROTNY KĄTOWY
Zawór zwrotny kątowy ze śrubunkami z przyłączami gwintowanymi BS
VR to zawór zwrotny kątowy z tłokiem z tworzywa, który pozwala na przepływ medium tylko w jednym kierunku.

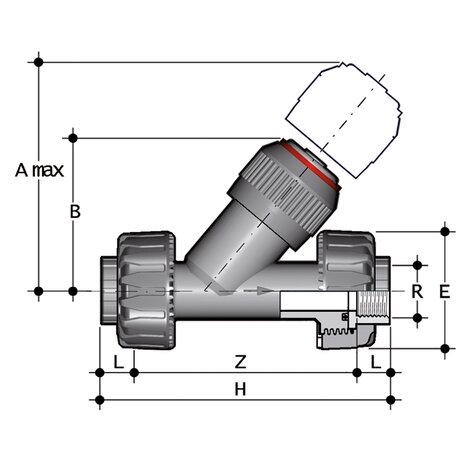

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | R | DN | PN | Amax | B | E | H | L | Z | Fig. | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VRUFV038E | - | - | System PVC-U | System PVC-U | PVC-U | 3/8” | 10 | 16 | 125 | 72 | 55 | 135 | 11,4 | 112,2 | A | 221 |
| VRUFV012E | - | - | System PVC-U | System PVC-U | PVC-U | 1/2” | 15 | 16 | 125 | 72 | 55 | 143 | 15 | 113 | A | 230 |
| VRUFV034E | - | - | System PVC-U | System PVC-U | PVC-U | 3/4” | 20 | 16 | 145 | 84 | 66 | 160 | 16,3 | 127,4 | A | 390 |
| VRUFV100E | - | - | System PVC-U | System PVC-U | PVC-U | 1” | 25 | 16 | 165 | 95 | 75 | 183 | 19,1 | 144,8 | A | 602 |
| VRUFV114E | - | - | System PVC-U | System PVC-U | PVC-U | 1” 1/4 | 32 | 16 | 190 | 111 | 87 | 214 | 21,4 | 171,2 | A | 932 |
| VRUFV112E | - | - | System PVC-U | System PVC-U | PVC-U | 1” 1/2 | 40 | 16 | 210 | 120 | 100 | 235 | 21,4 | 192,2 | A | 1341 |
| VRUFV200E | - | - | System PVC-U | System PVC-U | PVC-U | 2” | 50 | 16 | 240 | 139 | 120 | 285 | 25,7 | 233,6 | A | 2348 |
- Connection system for solvent weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
