VRUFM - ZAWÓR ZWROTNY KĄTOWY

Zawór zwrotny kątowy ze śrubunkami z przyłączami gwintowanymi BS
The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
Wróć do listy produktów
VRUFM - ZAWÓR ZWROTNY KĄTOWY
VRUFM - ZAWÓR ZWROTNY KĄTOWY
VRUFM - ZAWÓR ZWROTNY KĄTOWY
VRUFM - ZAWÓR ZWROTNY KĄTOWY

EPDM

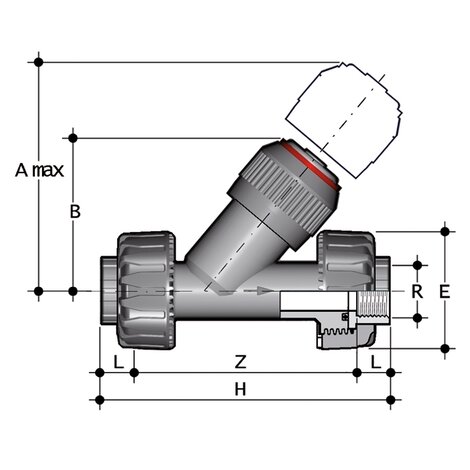

Indeks - Wymiar Kategoria produktu System Materiał R DN PN Amax B E H Z Masa
g/szt.
VRUFM012E - - System PP-H System PP-H PP-H 1/2” 15 10 125 71 55 143 113 165
VRUFM034E - - System PP-H System PP-H PP-H 3/4” 20 10 145 83 65 160 127 227
VRUFM100E - - System PP-H System PP-H PP-H 1” 25 10 165 94 74 183 145 380
VRUFM114E - - System PP-H System PP-H PP-H 1” 1/4 32 10 190 109 86 214 171 645
VRUFM112E - - System PP-H System PP-H PP-H 1” 1/2 40 10 210 119 99 235 192 915
VRUFM200E - - System PP-H System PP-H PP-H 2” 50 10 240 143 120 285 234 1555

FKM

Indeks - Wymiar Kategoria produktu System Materiał R DN PN Amax B E H Z Masa
g/szt.
VRUFM012F - - System PP-H System PP-H PP-H 1/2” 15 10 125 71 55 143 113 165
VRUFM034F - - System PP-H System PP-H PP-H 3/4” 20 10 145 83 65 160 127 227
VRUFM100F - - System PP-H System PP-H PP-H 1” 25 10 165 94 74 183 145 380
VRUFM114F - - System PP-H System PP-H PP-H 1” 1/4 32 10 190 109 86 214 171 645
VRUFM112F - - System PP-H System PP-H PP-H 1” 1/2 40 10 210 119 99 235 192 915
VRUFM200F - - System PP-H System PP-H PP-H 2” 50 10 240 143 120 285 234 1555
  • Connection system for weld, threaded and flanged joints
  • No metal parts in contact with the fluid
  • Piston with counterweight able to work with high intensity fluid
  • Limited pressure drop. Only minimum back pressure is required for the hermetic seal
  • Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
