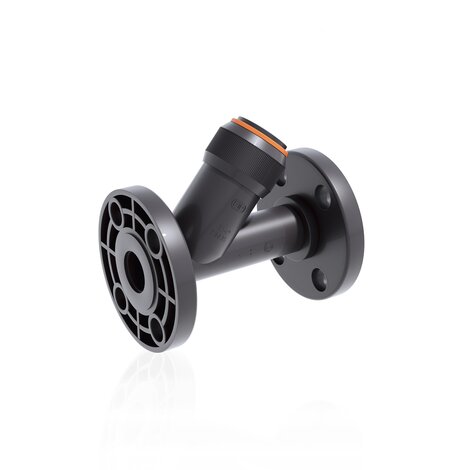

VROV D 20 Ă· 63 - ZAWÓR ZWROTNY KĄTOWY
Zawór zwrotny kątowy z kołnierzami, owiercenie PN10/16
VR to zawór zwrotny kątowy z tłokiem z tworzywa, który pozwala na przepływ medium tylko w jednym kierunku.
EPDM

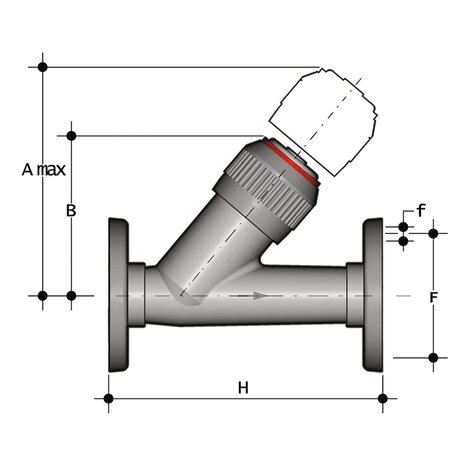

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | Amax | B | F | f | H | Fig. | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VROV020E | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 16 | 125 | 72 | 65 | 14 | 130 | A | 280 |
| VROV025E | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 16 | 145 | 84 | 75 | 14 | 150 | A | 430 |
| VROV032E | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 16 | 165 | 95 | 85 | 14 | 160 | A | 640 |
| VROV040E | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 16 | 190 | 111 | 100 | 18 | 180 | A | 1035 |
| VROV050E | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 16 | 210 | 120 | 110 | 18 | 200 | A | 1405 |
| VROV063E | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 16 | 240 | 139 | 125 | 18 | 230 | A | 2235 |
FKM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | Amax | B | F | f | H | Fig. | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VROV020F | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 16 | 125 | 72 | 65 | 14 | 130 | A | 280 |
| VROV025F | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 16 | 145 | 84 | 75 | 14 | 150 | A | 430 |
| VROV032F | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 16 | 165 | 95 | 85 | 14 | 160 | A | 640 |
| VROV040F | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 16 | 190 | 111 | 100 | 18 | 180 | A | 1035 |
| VROV050F | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 16 | 210 | 120 | 110 | 18 | 200 | A | 1405 |
| VROV063F | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 16 | 240 | 139 | 125 | 18 | 230 | A | 2235 |
- Connection system for solvent weld, threaded and flanged joints
- No metal parts in contact with the fluid
- Piston with counterweight able to work with high intensity fluid
- Limited pressure drop. Only minimum back pressure is required for the hermetic seal
- Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
- Can be maintained with the valve body installed
