VROM - ZAWÓR ZWROTNY KĄTOWY

Zawór zwrotny kątowy z kołnierzami PP z rdzeniem stalowym PP/FRP EN/ISO/DIN PN10/16

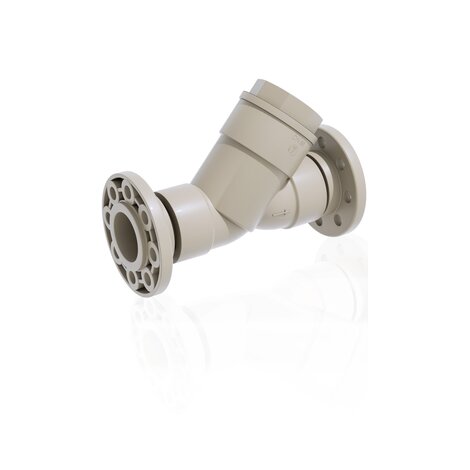

The VR is an angle seat check valve with weighted PP-H piston that allows the passage of fluid in one direction only.
Wróć do listy produktów

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amax B F f H Masa
g/szt.
VROM075E - - System PP-H System PP-H PP-H 75 65 6 300 179 145 18 356 5990
VROM090E - - System PP-H System PP-H PP-H 90 80 4 325 192 160 18 404 7230

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN Amax B F f H Masa
g/szt.
VROM075F - - System PP-H System PP-H PP-H 75 65 6 300 179 145 18 356 5990
VROM090F - - System PP-H System PP-H PP-H 90 80 4 325 192 160 18 404 7230
  • Connection system for weld, threaded and flanged joints
  • No metal parts in contact with the fluid
  • Piston with counterweight able to work with high intensity fluid
  • Limited pressure drop. Only minimum back pressure is required for the hermetic seal
  • Valve material compatibility (PP-H) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
