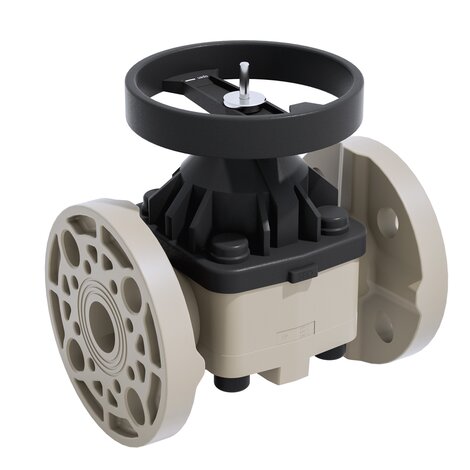

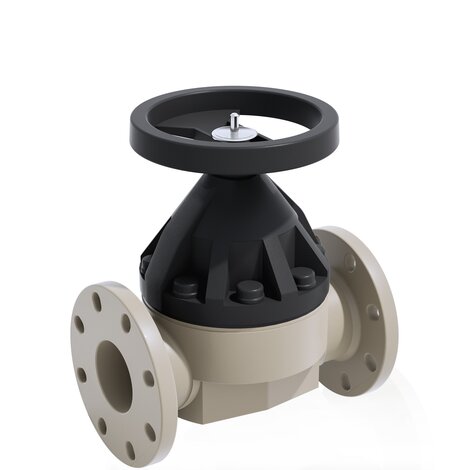

VMOM - ZAWÓR MEMBRANOWY DN80-100

Zawór membranowy z kołnierzami PN 10/16 zg. z EN 558-1
VM to zawory membranowe przeznaczone do zamykania i regulowania przepływu m.in. abrazyjnych i zanieczyszczonych cieczy. Sterowanie pokrętłem ręcznym i uszczelnienie membranowe zapewniają precyzyjną i skuteczną kontrolę, redukując jednocześnie do minimum ryzyko uderzenia hydraulicznego.

product.detail.headline.features:

  • Handwheel in (PA-GR) with high mechanical strength and ergonomic grip for optimum manageability
  • Metal optical position indicator supplied as standard
  • Full protection bonnet in PP-GR Internal circular and symmetrical diaphragm sealing area
  • Diaphragm available in EPDM, FPM, PTFE (NBR on request) and easy to replace
  • Threaded metal inserts for anchoring the valve
  • New valve body internal design: substantially higher flow coefficient resulting in lower pressure drops. Optimised adjustment curve for effective and precise flow rate regulation
Wróć do listy produktów

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 F f H product.detail.attribute.H[5:1] product.detail.attribute.I product.detail.attribute.J Sp U Masa
g/szt.
VMOM090E - - System PP-H System PP-H PP-H 90 80 *10 225 64 160 18 310 200 100 M12 22 8 7500
VMOM110E - - System PP-H System PP-H PP-H 110 100 *10 295 72 180 18 350 250 120 M12 23 8 10480

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 F f H product.detail.attribute.H[5:1] product.detail.attribute.I product.detail.attribute.J Sp U Masa
g/szt.
VMOM090F - - System PP-H System PP-H PP-H 90 80 *10 225 64 160 18 310 200 100 M12 22 8 7500
VMOM110F - - System PP-H System PP-H PP-H 110 100 *10 295 72 180 18 350 250 120 M12 23 8 10480

PTFE

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 F f H product.detail.attribute.H[5:1] product.detail.attribute.I product.detail.attribute.J Sp U Masa
g/szt.
VMOM090P - - System PP-H System PP-H PP-H 90 80 *10 225 64 160 18 310 200 100 M12 22 8 7500
VMOM110P - - System PP-H System PP-H PP-H 110 100 *10 295 72 180 18 350 250 120 M12 23 8 10480
  • Connection system for solvent welding and for flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Handwheel that stays at the same height during rotation, with internal bearing to minimise friction and operating torque
  • Standard optical indicator
  • Internal operating components in metal totally isolated from the conveyed fluid
  • Bonnet fastening screws in STAINLESS steel protected against the external environment by PE plugs
  • New flanged bodies: the new bodies, characterised by a monolithic flanged structure, are available in PVC-U, PVC-C, PP-H and PVDF. This design, free from body and flange joints, greatly reduces mechanical stress and increases system performance.
