VKROAM - ZAWÓR KULOWY REGULACYJNY DUAL BLOCK®

Zawór kulowy regulacyjny DUAL BLOCK® z kołnierzami zg. z EN/ISO/DIN PN 10/16, EN 558-1
Zawór kulowy regulacyjny VKR Dual Block® to kombinacja gwarantującego pewność i bezpieczeństwo zaworu kulowego VKD z pełnym przepływem oraz funkcji precyzyjnej i powtarzalnej regulacji przepływu cieczy, która sprosta nawet najbardziej wymagającym zastosowaniom przemysłowym.

product.detail.headline.features:

  • HIPVC ergonomic multifunctional handle with position indicator and tool to adjust the ball seat carrier
  • Flow direction and opening angle indication plate with graduated scale with 5° detail for clear and accurate readings
  • 90° operating angle that permits the use of standard quarter turn actuators
  • The patented ball design provides linear flow adjustment throughout its range of operation even when the valve is open just a few degrees and guarantees minimum pressure drops
  • Patented DUAL BLOCK® system: prevents union nuts from loosening even under extreme operating conditions: e.g. vibration or thermal expansion
Wróć do listy produktów

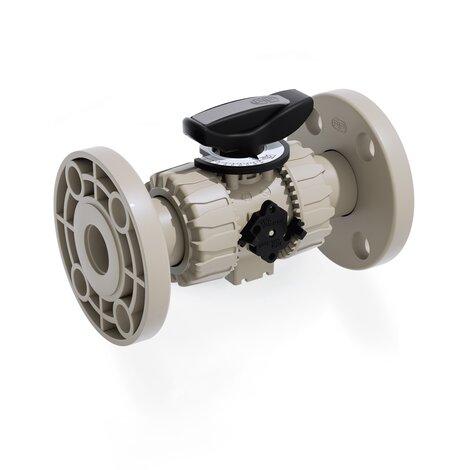

Immagine della valvola VKR DN10-50 in PP-H
VKROAM - ZAWÓR KULOWY REGULACYJNY DUAL BLOCK®
Immagine della valvola VKR DN10-50 in PP-H
VKROAM - ZAWÓR KULOWY REGULACYJNY DUAL BLOCK®

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 F f H product.detail.attribute.H1 Sp U Masa
g/szt.
VKROAM012E - - System PP-H System PP-H PP-H 1/2” 15 10 54 29 67 40 60,3 15,9 143 65 11 4 387
VKROAM034E - - System PP-H System PP-H PP-H 3/4” 20 10 65 34,5 85 49 69,9 15,9 172 70 14 4 504
VKROAM100E - - System PP-H System PP-H PP-H 1” 25 10 69,5 39 85 49 79,4 15,9 187 78 14 4 697
VKROAM114E - - System PP-H System PP-H PP-H 1” 1/4 32 10 82,5 46 108 64 88,9 15,9 190 88 14 4 1075
VKROAM112E - - System PP-H System PP-H PP-H 1” 1/2 40 10 89 52 108 64 98,4 15,9 212 93 16 4 1346
VKROAM200E - - System PP-H System PP-H PP-H 2” 50 10 108 62 134 76 120,7 19,1 234 111 16 4 2060

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 F f H product.detail.attribute.H1 Sp U Masa
g/szt.
VKROAM012F - - System PP-H System PP-H PP-H 1/2” 15 10 54 29 67 40 60,3 15,9 143 65 11 4 387
VKROAM034F - - System PP-H System PP-H PP-H 3/4” 20 10 65 34,5 85 49 69,9 15,9 172 70 14 4 504
VKROAM100F - - System PP-H System PP-H PP-H 1” 25 10 69,5 39 85 49 79,4 15,9 187 78 14 4 697
VKROAM114F - - System PP-H System PP-H PP-H 1” 1/4 32 10 82,5 46 108 64 88,9 15,9 190 88 14 4 1075
VKROAM112F - - System PP-H System PP-H PP-H 1” 1/2 40 10 89 52 108 64 98,4 15,9 212 93 16 4 1346
VKROAM200F - - System PP-H System PP-H PP-H 2” 50 10 108 62 134 76 120,7 19,1 234 111 16 4 2060
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double connection key to ball
  • Integrated bracket for valve anchoring
  • Ball seat carrier can be adjusted using the Easytorque adjustment kit
  • Actuation option: version with electric modulating actuator with 4-20 mA / 0-10 V inlet and 4-20 mA / 0-10 V outlet to monitor the position
  • Valve suitable for carrying fluids that are clean and free of suspended particles
