VKDOC - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®

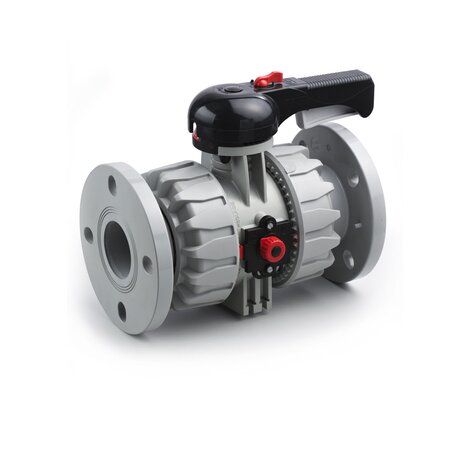

Zawór kulowy 2-drożny DUAL BLOCK® z kołnierzami zg. z EN/ISO/DIN PN 10/16 i EN 558-1
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.

product.detail.headline.features:

  • HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
  • Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Double stem with double O-Rings for ball centring and operating torque reduction
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Wróć do listy produktów

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 F f H product.detail.attribute.H[5:1] Sp U Masa
g/szt.
VKDOC075E - - System PVC-C System PVC-C PVC-C 75 65 16 164 87 327 175 145 17 290 133 21 4 6413
VKDOC090E - - System PVC-C System PVC-C PVC-C 90 80 16 177 105 327 272 160 17 310 149 21,5 8 9669
VKDOC110E - - System PVC-C System PVC-C PVC-C 110 100 16 195 129 385 330 180 17 350 167 21,5 8 14967

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 F f H product.detail.attribute.H[5:1] Sp U Masa
g/szt.
VKDOC075F - - System PVC-C System PVC-C PVC-C 75 65 16 164 87 327 175 145 17 290 133 21 4 6413
VKDOC090F - - System PVC-C System PVC-C PVC-C 90 80 16 177 105 327 272 160 17 310 149 21,5 8 9669
VKDOC110F - - System PVC-C System PVC-C PVC-C 110 100 16 195 129 385 330 180 17 350 167 21,5 8 14967
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
  • STAINLESS steel co-moulded stem, with square section as per ISO 5211
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
