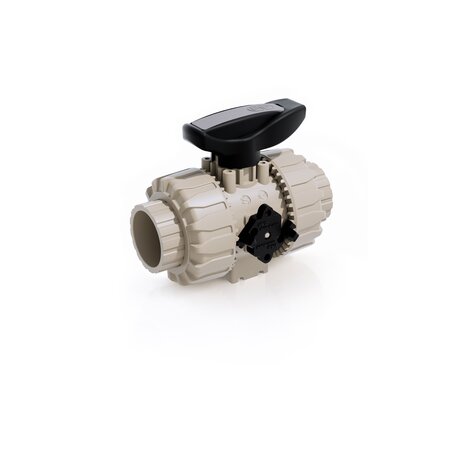

VKDIM - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®

Zawór kulowy 2-drożny DUAL BLOCK® ze śrubunkami z końcówkami mufowymi do zgrzewania mufowego
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.

product.detail.headline.features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Wróć do listy produktów

EPDM

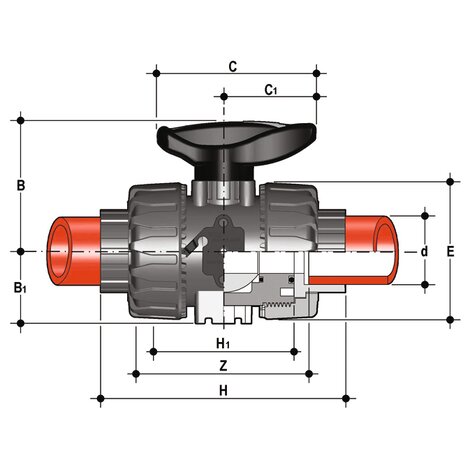

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] Z Masa
g/szt.
VKDIM016E - - System PP-H System PP-H PP-H 16 10 10 54 29 67 40 54 102 65 74,5 150
VKDIM020E - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 102 65 73 145
VKDIM025E - - System PP-H System PP-H PP-H 25 20 10 65 34,5 85 49 65 114 70 82 218
VKDIM032E - - System PP-H System PP-H PP-H 32 25 10 69,5 39 85 49 73 126 78 90 298
VKDIM040E - - System PP-H System PP-H PP-H 40 32 10 82,5 46 108 64 86 141 88 100 480
VKDIM050E - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 164 93 117 682
VKDIM063E - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 199 111 144 1166

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] Z Masa
g/szt.
VKDIM016E0LF - - System PP-H System PP-H PP-H 16 10 10 54 29 67 40 54 102 65 74,5 150
VKDIM020E0LF - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 102 65 73 145
VKDIM025E0LF - - System PP-H System PP-H PP-H 25 20 10 65 34,5 85 49 65 114 70 82 218
VKDIM032E0LF - - System PP-H System PP-H PP-H 32 25 10 69,5 39 85 49 73 126 78 90 298
VKDIM040E0LF - - System PP-H System PP-H PP-H 40 32 10 82,5 46 108 64 86 141 88 100 480
VKDIM050E0LF - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 164 93 117 682
VKDIM063E0LF - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 199 111 144 1166

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] Z Masa
g/szt.
VKDIM016E0SF - - System PP-H System PP-H PP-H 16 10 10 54 29 67 40 54 102 65 74,5 150
VKDIM020E0SF - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 102 65 73 145
VKDIM025E0SF - - System PP-H System PP-H PP-H 25 20 10 65 34,5 85 49 65 114 70 82 218
VKDIM032E0SF - - System PP-H System PP-H PP-H 32 25 10 69,5 39 85 49 73 126 78 90 298
VKDIM040E0SF - - System PP-H System PP-H PP-H 40 32 10 82,5 46 108 64 86 141 88 100 480
VKDIM050E0SF - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 164 93 117 682
VKDIM063E0SF - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 199 111 144 1166

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] Z Masa
g/szt.
VKDIM016F - - System PP-H System PP-H PP-H 16 10 10 54 29 67 40 54 102 65 74,5 150
VKDIM020F - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 102 65 73 145
VKDIM025F - - System PP-H System PP-H PP-H 25 20 10 65 34,5 85 49 65 114 70 82 218
VKDIM032F - - System PP-H System PP-H PP-H 32 25 10 69,5 39 85 49 73 126 78 90 298
VKDIM040F - - System PP-H System PP-H PP-H 40 32 10 82,5 46 108 64 86 141 88 100 480
VKDIM050F - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 164 93 117 682
VKDIM063F - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 199 111 144 1166

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] Z Masa
g/szt.
VKDIM016F0LF - - System PP-H System PP-H PP-H 16 10 10 54 29 67 40 54 102 65 74,5 150
VKDIM020F0LF - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 102 65 73 145
VKDIM025F0LF - - System PP-H System PP-H PP-H 25 20 10 65 34,5 85 49 65 114 70 82 218
VKDIM032F0LF - - System PP-H System PP-H PP-H 32 25 10 69,5 39 85 49 73 126 78 90 298
VKDIM040F0LF - - System PP-H System PP-H PP-H 40 32 10 82,5 46 108 64 86 141 88 100 480
VKDIM050F0LF - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 164 93 117 682
VKDIM063F0LF - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 199 111 144 1166

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] Z Masa
g/szt.
VKDIM016F0SF - - System PP-H System PP-H PP-H 16 10 10 54 29 67 40 54 102 65 74,5 150
VKDIM020F0SF - - System PP-H System PP-H PP-H 20 15 10 54 29 67 40 54 102 65 73 145
VKDIM025F0SF - - System PP-H System PP-H PP-H 25 20 10 65 34,5 85 49 65 114 70 82 218
VKDIM032F0SF - - System PP-H System PP-H PP-H 32 25 10 69,5 39 85 49 73 126 78 90 298
VKDIM040F0SF - - System PP-H System PP-H PP-H 40 32 10 82,5 46 108 64 86 141 88 100 480
VKDIM050F0SF - - System PP-H System PP-H PP-H 50 40 10 89 52 108 64 98 164 93 117 682
VKDIM063F0SF - - System PP-H System PP-H PP-H 63 50 10 108 62 134 76 122 199 111 144 1166
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
