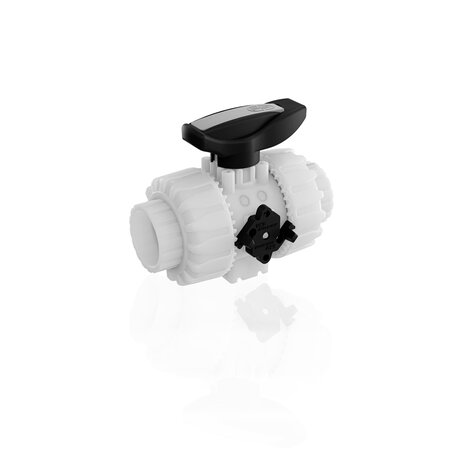

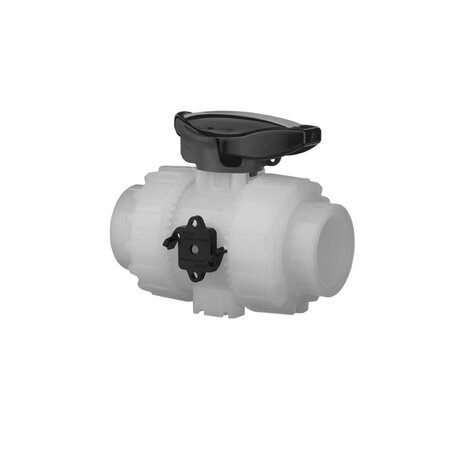

VKDIF - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®
Zawór kulowy 2-drożny DUAL BLOCK® ze śrubunkami z końcówkami mufowymi do zgrzewania mufowego
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.
product.detail.headline.features:
- Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
- Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
- Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
VKDIF - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®
| Indeks | - | Kategoria produktu | System | Materiał |
|---|---|---|---|---|
| VKDIF016F | - | System PVDF | System PVDF | PVDF |
| VKDIF020F | - | System PVDF | System PVDF | PVDF |
| VKDIF025F | - | System PVDF | System PVDF | PVDF |
| VKDIF032F | - | System PVDF | System PVDF | PVDF |
| VKDIF040F | - | System PVDF | System PVDF | PVDF |
| VKDIF050F | - | System PVDF | System PVDF | PVDF |
| VKDIF063F | - | System PVDF | System PVDF | PVDF |
VKDIF - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®
| Indeks | - | Kategoria produktu | System | Materiał |
|---|---|---|---|---|
| VKDIF016F0LF | - | System PVDF | System PVDF | PVDF |
| VKDIF020F0LF | - | System PVDF | System PVDF | PVDF |
| VKDIF025F0LF | - | System PVDF | System PVDF | PVDF |
| VKDIF032F0LF | - | System PVDF | System PVDF | PVDF |
| VKDIF040F0LF | - | System PVDF | System PVDF | PVDF |
| VKDIF050F0LF | - | System PVDF | System PVDF | PVDF |
| VKDIF063F0LF | - | System PVDF | System PVDF | PVDF |
VKDIF - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®
| Indeks | - | Kategoria produktu | System | Materiał |
|---|---|---|---|---|
| VKDIF016F0SF | - | System PVDF | System PVDF | PVDF |
| VKDIF020F0SF | - | System PVDF | System PVDF | PVDF |
| VKDIF025F0SF | - | System PVDF | System PVDF | PVDF |
| VKDIF032F0SF | - | System PVDF | System PVDF | PVDF |
| VKDIF040F0SF | - | System PVDF | System PVDF | PVDF |
| VKDIF050F0SF | - | System PVDF | System PVDF | PVDF |
| VKDIF063F0SF | - | System PVDF | System PVDF | PVDF |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- Floating full bore ball with high surface finish
- Integrated bracket for valve anchoring
- Ball seat carriers can be adjusted using the Easytorque adjustment kit
- Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
