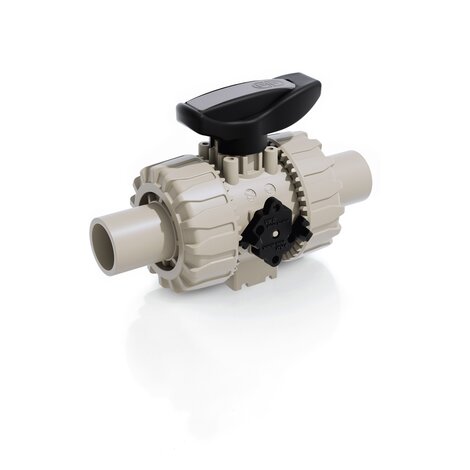

VKDBM - ZAWÓR KULOWY 2-DROŻNY DUAL BLOCK®
Zawór kulowy 2-drożny DUAL BLOCK® z długimi końcówkami PP-H SDR11 (CVDM) do zgrzewania doczołowego
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.
product.detail.headline.features:
- Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
- Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
- Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
EPDM

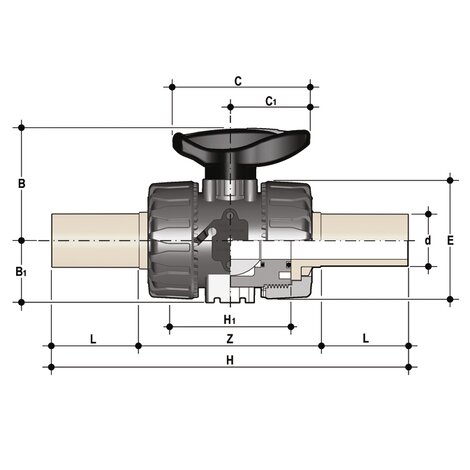

Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | C | C1 | E | H | product.detail.attribute.H[5:1] | L | Z | Masa g/szt. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VKDBM020E | - | - | System PP-H | System PP-H | PP-H | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
VKDBM025E | - | - | System PP-H | System PP-H | PP-H | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
VKDBM032E | - | - | System PP-H | System PP-H | PP-H | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
VKDBM040E | - | - | System PP-H | System PP-H | PP-H | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
VKDBM050E | - | - | System PP-H | System PP-H | PP-H | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
VKDBM063E | - | - | System PP-H | System PP-H | PP-H | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
EPDM
Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | C | C1 | E | H | product.detail.attribute.H[5:1] | L | Z | Masa g/szt. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VKDBM020E0LF | - | - | System PP-H | System PP-H | PP-H | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
VKDBM025E0LF | - | - | System PP-H | System PP-H | PP-H | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
VKDBM032E0LF | - | - | System PP-H | System PP-H | PP-H | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
VKDBM040E0LF | - | - | System PP-H | System PP-H | PP-H | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
VKDBM050E0LF | - | - | System PP-H | System PP-H | PP-H | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
VKDBM063E0LF | - | - | System PP-H | System PP-H | PP-H | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
EPDM
Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | C | C1 | E | H | product.detail.attribute.H[5:1] | L | Z | Masa g/szt. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VKDBM020E0SF | - | - | System PP-H | System PP-H | PP-H | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
VKDBM025E0SF | - | - | System PP-H | System PP-H | PP-H | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
VKDBM032E0SF | - | - | System PP-H | System PP-H | PP-H | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
VKDBM040E0SF | - | - | System PP-H | System PP-H | PP-H | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
VKDBM050E0SF | - | - | System PP-H | System PP-H | PP-H | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
VKDBM063E0SF | - | - | System PP-H | System PP-H | PP-H | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
FKM
Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | C | C1 | E | H | product.detail.attribute.H[5:1] | L | Z | Masa g/szt. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VKDBM020F | - | - | System PP-H | System PP-H | PP-H | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
VKDBM025F | - | - | System PP-H | System PP-H | PP-H | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
VKDBM032F | - | - | System PP-H | System PP-H | PP-H | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
VKDBM040F | - | - | System PP-H | System PP-H | PP-H | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
VKDBM050F | - | - | System PP-H | System PP-H | PP-H | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
VKDBM063F | - | - | System PP-H | System PP-H | PP-H | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
FKM
Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | C | C1 | E | H | product.detail.attribute.H[5:1] | L | Z | Masa g/szt. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VKDBM020F0LF | - | - | System PP-H | System PP-H | PP-H | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
VKDBM025F0LF | - | - | System PP-H | System PP-H | PP-H | 25 | 20 | 10 | 65 | 35 | 85 | 49 | 65 | 212 | 70 | 54 | 106 | 340 |
VKDBM032F0LF | - | - | System PP-H | System PP-H | PP-H | 32 | 25 | 10 | 70 | 39 | 85 | 49 | 73 | 226 | 78 | 56 | 117 | 443 |
VKDBM040F0LF | - | - | System PP-H | System PP-H | PP-H | 40 | 32 | 10 | 83 | 46 | 108 | 64 | 86 | 246 | 88 | 56 | 131 | 593 |
VKDBM050F0LF | - | - | System PP-H | System PP-H | PP-H | 50 | 40 | 10 | 89 | 52 | 108 | 64 | 98 | 271 | 93 | 60,5 | 145 | 945 |
VKDBM063F0LF | - | - | System PP-H | System PP-H | PP-H | 63 | 50 | 10 | 108 | 62 | 134 | 76 | 122 | 300 | 111 | 65,5 | 161 | 1607 |
FKM
Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | C | C1 | E | H | product.detail.attribute.H[5:1] | L | Z | Masa g/szt. |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VKDBM020F0SF | - | - | System PP-H | System PP-H | PP-H | 20 | 15 | 10 | 54 | 29 | 67 | 40 | 54 | 175 | 65 | 40,5 | 94 | 220 |
VKDBM025F0SF | - | - | System PP-H | System PP-H | PP-H | 25 | 20 | 10 | 65 | 35 | 85 |
