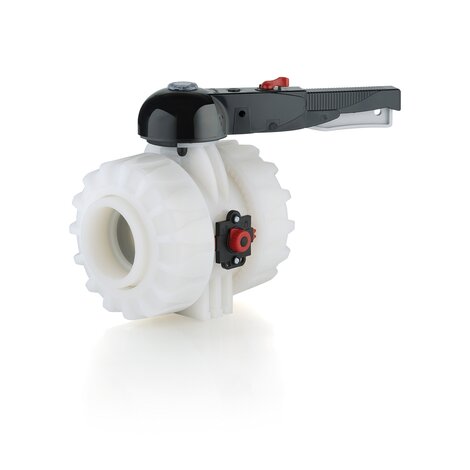

Zawór kulowy 2-drożny DUAL BLOCK® ze śrubunkami z końcówkami długimi PVDF SDR21 do zgrzewania doczołowego lub elektrooporowego (CVDF)
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.


  • HIPVC ergonomic multifunctional handle for quick operation, lock and graduated adjustment in 10 positions. Possibility of inhibiting rotation with a lock
  • Customisable Labelling System: LCE module made of a transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation lets you identify the valve on the system according to specific needs
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Double stem with double O-Rings for ball centring and operating torque reduction
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Wróć do listy produktów

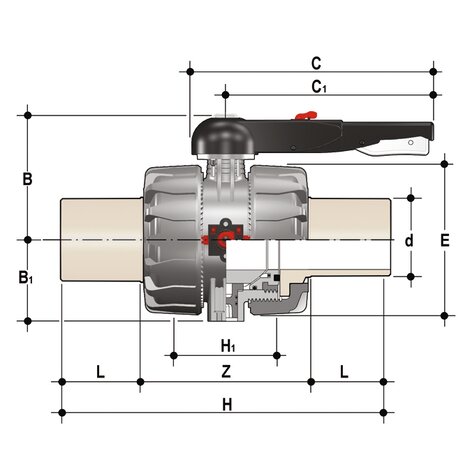

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 C C1 E H product.detail.attribute.H[5:1] L Z Masa
VKDBF075F - - System PVDF System PVDF PVDF 75 65 16 164 87 225 175 162 284 133 71 142 4700
VKDBF090F - - System PVDF System PVDF PVDF 90 80 16 177 105 327 272 202 300 149 88 124 7150
VKDBF110F - - System PVDF System PVDF PVDF 110 100 16 195 129 385 330 236 340 167 92 156 11300
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust seals and minimise axial force effects
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying an ISO standard bore PP-GR flange
  • STAINLESS steel co-moulded stem, with square section as per ISO 5211
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
