VEEBEV - ZAWÓR KULOWY 2-DROŻNY EASYFIT

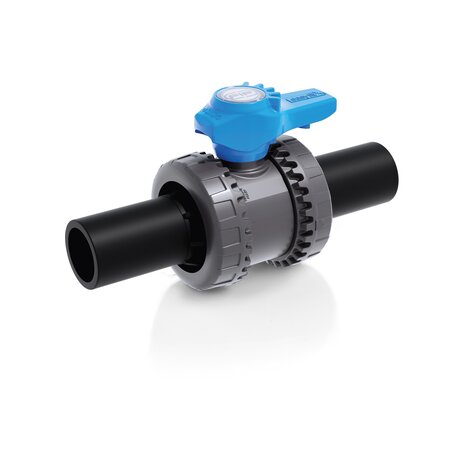

Zawór kulowy EASYFIT z końcówkami PE (CVDE) do zgrzewania doczołowego lub elektrooporowego, PE100, SDR11
FIP przy współudziale Giugiaro Design zaprojektował i wdrożył innowacyjny zawór kulowy VXE Easyfit wyposażony w uniwersalne śrubunki True Union oraz dźwignię/klucz służącą do sterowania i obsługi zaworu. Dodatkowo na dźwigni znajduje się okienko z wymienną etykietą pozwalającą na opis lokalizacji zaworu na instalacji.

product.detail.headline.features:

  • Two position Easyfit ergonomic multifunctional handle with union nut tightening control which can be used to adjust ball seat carriers. Handle use is especially indicated for maintenance work where space is limited and hard to access
  • Settings for the customisable Labelling System using the LCE module (available as an accessory). The grey protection plug housed on the handle can be replaced with the transparent plug and customisable tag holder with the LSE set (available as an accessory). The customisation lets you identify the valve on the system according to specific needs
  • The PE ball seat system with locked carrier adjustable via Easyfit multifunctional handle or Easytorque adjustment kit (available as an accessory)
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Wróć do listy produktów
Indeks - Wymiar Kategoria produktu System Materiał d DN PN
VEEBEV020E - - System PVC-U System PVC-U PVC-U 20 15 16
VEEBEV025E - - System PVC-U System PVC-U PVC-U 25 20 16
VEEBEV032E - - System PVC-U System PVC-U PVC-U 32 25 16
VEEBEV040E - - System PVC-U System PVC-U PVC-U 40 32 16
VEEBEV050E - - System PVC-U System PVC-U PVC-U 50 40 16
VEEBEV063E - - System PVC-U System PVC-U PVC-U 63 50 16
  • Patented Easyfit system: innovative mechanism based on the principle of the bevel gear pair that controls valve union nut rotation during installation.
  • Connection system for solvent weld and threaded joints
  • Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for PVC-U injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
  • Fully interchangeable with previous VE series models
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish made in CNC work stations to achieve precise dimensional tolerance and high surface finish
