TKDIM - ZAWÓR KULOWY 3-DROŻNY DUAL BLOCK®

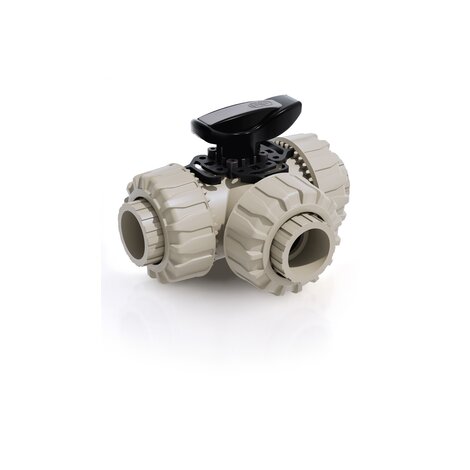

Zawór 3-drożny DUAL BLOCK® kulowy (kula "T") ze śrubunkami z końcówkami nyplowymi do zgrzewania mufowego
Opracowane przez FIP zawory kulowe TKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. TKD to zawór rozdzielająco-mieszający z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.

product.detail.headline.features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier. Possibility of installing the LTKD stroke limiter (available as an accessory) that permits ball and handle rotation only for set opening and closing angles at 90° or 180°
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Ball shutter high surface finish with floating type full passage with T or L port
  • 4 PTFE ball seat system that compensates axial force guaranteeing optimal manageability and long working life
Wróć do listy produktów

EPDM

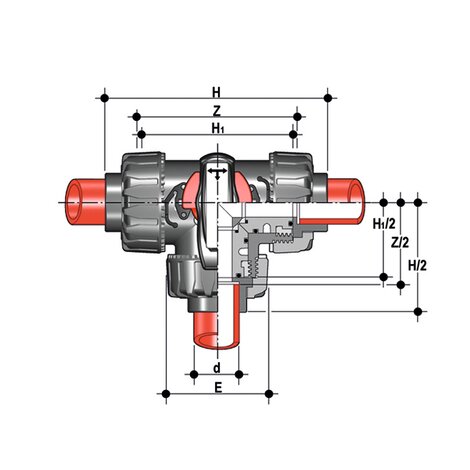

Indeks - Wymiar Kategoria produktu System Materiał d DN PN E H product.detail.attribute.H[5:1] Z Masa
g/szt.
TKDIM020E - - System PP-H System PP-H PP-H 20 15 10 54 117 80 88 195
TKDIM025E - - System PP-H System PP-H PP-H 25 20 10 65 144 100 112 350
TKDIM032E - - System PP-H System PP-H PP-H 32 25 10 73 158 110 122 505
TKDIM040E - - System PP-H System PP-H PP-H 40 32 10 86 184 131 143 820
TKDIM050E - - System PP-H System PP-H PP-H 50 40 10 98 219 148 172 1070
TKDIM063E - - System PP-H System PP-H PP-H 63 50 10 122 267 179 212 1795

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN E H product.detail.attribute.H[5:1] Z Masa
g/szt.
TKDIM020E0LF - - System PP-H System PP-H PP-H 20 15 10 54 117 80 88 195
TKDIM025E0LF - - System PP-H System PP-H PP-H 25 20 10 65 144 100 112 350
TKDIM032E0LF - - System PP-H System PP-H PP-H 32 25 10 73 158 110 122 505
TKDIM040E0LF - - System PP-H System PP-H PP-H 40 32 10 86 184 131 143 820
TKDIM050E0LF - - System PP-H System PP-H PP-H 50 40 10 98 219 148 172 1070
TKDIM063E0LF - - System PP-H System PP-H PP-H 63 50 10 122 267 179 212 1795

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN E H product.detail.attribute.H[5:1] Z Masa
g/szt.
TKDIM020E0SF - - System PP-H System PP-H PP-H 20 15 10 54 117 80 88 195
TKDIM025E0SF - - System PP-H System PP-H PP-H 25 20 10 65 144 100 112 350
TKDIM032E0SF - - System PP-H System PP-H PP-H 32 25 10 73 158 110 122 505
TKDIM040E0SF - - System PP-H System PP-H PP-H 40 32 10 86 184 131 143 820
TKDIM050E0SF - - System PP-H System PP-H PP-H 50 40 10 98 219 148 172 1070
TKDIM063E0SF - - System PP-H System PP-H PP-H 63 50 10 122 267 179 212 1795

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN E H product.detail.attribute.H[5:1] Z Masa
g/szt.
TKDIM020F - - System PP-H System PP-H PP-H 20 15 10 54 117 80 88 195
TKDIM025F - - System PP-H System PP-H PP-H 25 20 10 65 144 100 112 350
TKDIM032F - - System PP-H System PP-H PP-H 32 25 10 73 158 110 122 505
TKDIM040F - - System PP-H System PP-H PP-H 40 32 10 86 184 131 143 820
TKDIM050F - - System PP-H System PP-H PP-H 50 40 10 98 219 148 172 1070
TKDIM063F - - System PP-H System PP-H PP-H 63 50 10 122 267 179 212 1795

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN E H product.detail.attribute.H[5:1] Z Masa
g/szt.
TKDIM020F0LF - - System PP-H System PP-H PP-H 20 15 10 54 117 80 88 195
TKDIM025F0LF - - System PP-H System PP-H PP-H 25 20 10 65 144 100 112 350
TKDIM032F0LF - - System PP-H System PP-H PP-H 32 25 10 73 158 110 122 505
TKDIM040F0LF - - System PP-H System PP-H PP-H 40 32 10 86 184 131 143 820
TKDIM050F0LF - - System PP-H System PP-H PP-H 50 40 10 98 219 148 172 1070
TKDIM063F0LF - - System PP-H System PP-H PP-H 63 50 10 122 267 179 212 1795

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN E H product.detail.attribute.H[5:1] Z Masa
g/szt.
TKDIM020F0SF - - System PP-H System PP-H PP-H 20 15 10 54 117 80 88 195
TKDIM025F0SF - - System PP-H System PP-H PP-H 25 20 10 65 144 100 112 350
TKDIM032F0SF - - System PP-H System PP-H PP-H 32 25 10 73 158 110 122 505
TKDIM040F0SF - - System PP-H System PP-H PP-H 40 32 10 86 184 131 143 820
TKDIM050F0SF - - System PP-H System PP-H PP-H 50 40 10 98 219 148 172 1070
TKDIM063F0SF - - System PP-H System PP-H PP-H 63 50 10 122 267 179 212 1795
  • Connection system for weld and threaded joints
  • Patented SEAT STOP® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • PN10 True Union valve body made for PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of disassembling downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double groove ball connection, equipped with optical position indicator for correct handle installation
  • Integrated bracket for valve anchoring
  • Possibility of installing pneumatic and/or electric actuators thanks to the robust integrated bracket for valve anchoring for easy and quick automation using the Power Quick module (optional)
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
