SXEIV - ZAWÓR ZWROTNY KULOWY TRUE UNION EASYFIT
Zawór zwrotny kulowy Easyfit ze śrubunkami z końcówkami mufowymi do wklejenia, metryczny
Zawór zwrotny SXE Easyfit ze sprężyną opracowany przez Giugiaro Design wyróżnia się innowacyjnym sposobem montażu, który gwarantuje niezawodną pracę przez długi okres czasu. Zawór ten jest również wyposażony w indywidualny system etykietowania.
product.detail.headline.features:
- Customisable Labelling System: built-in LCE module on the valve body made up of transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation potential lets you identify the valve on the system according to specific needs
- Optimised dynamic fluid design: energy savings due to the improved valve Kv value and consequent reduced pressure drop
- High surface finish ball shutter: reduced wear, longer working life and reduced valve maintenance. Ideal to convey dirty fluids, even with suspended fluids or filaments, thanks to the special design that permits internal valve selfcleaning
- Locked ball seat carrier: safe dismounting for maintenance with the Easyfit multifunctional handle
- Ideal for horizontal installations: perfect seal even with low back pressure. Silent and durable even with strong vibrations and pulsating fluid
- PVC-U shutter and springs available in STAINLESS Steel 316, A316 PTFE encapsulated: maximum reliability in a wide field of applications from salt water to aggressive acids
EPDM

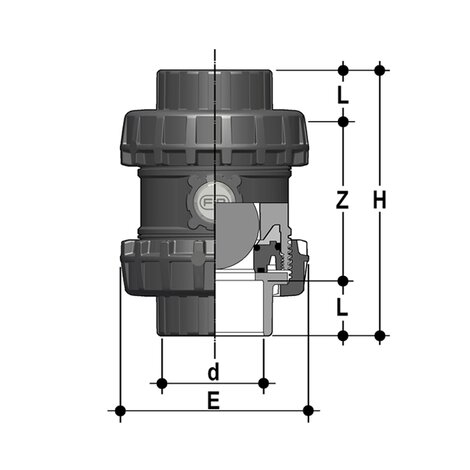

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | E | H | L | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SXEIV075E | - | - | System PVC-U | System PVC-U | PVC-U | 75 | 65 | 16 | 157 | 211 | 44 | 123 | 2605 |
| SXEIV090E | - | - | System PVC-U | System PVC-U | PVC-U | 90 | 80 | 16 | 174 | 248 | 51 | 146 | 3300 |
| SXEIV110E | - | - | System PVC-U | System PVC-U | PVC-U | 110 | 100 | 16 | 212 | 283 | 61 | 161 | 5770 |
EPDM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | E | H | L | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SXEIV075E0SF | - | - | System PVC-U | System PVC-U | PVC-U | 75 | 65 | 16 | 157 | 211 | 44 | 123 | 2605 |
| SXEIV090E0SF | - | - | System PVC-U | System PVC-U | PVC-U | 90 | 80 | 16 | 174 | 248 | 51 | 146 | 3300 |
| SXEIV110E0SF | - | - | System PVC-U | System PVC-U | PVC-U | 110 | 100 | 16 | 212 | 283 | 61 | 161 | 5770 |
FKM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | E | H | L | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SXEIV075F | - | - | System PVC-U | System PVC-U | PVC-U | 75 | 65 | 16 | 157 | 211 | 44 | 123 | 2605 |
| SXEIV090F | - | - | System PVC-U | System PVC-U | PVC-U | 90 | 80 | 16 | 174 | 248 | 51 | 146 | 3300 |
| SXEIV110F | - | - | System PVC-U | System PVC-U | PVC-U | 110 | 100 | 16 | 212 | 283 | 61 | 161 | 5770 |
FKM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | E | H | L | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SXEIV075F0SF | - | - | System PVC-U | System PVC-U | PVC-U | 75 | 65 | 16 | 157 | 211 | 44 | 123 | 2605 |
| SXEIV090F0SF | - | - | System PVC-U | System PVC-U | PVC-U | 90 | 80 | 16 | 174 | 248 | 51 | 146 | 3300 |
| SXEIV110F0SF | - | - | System PVC-U | System PVC-U | PVC-U | 110 | 100 | 16 | 212 | 283 | 61 | 161 | 5770 |
- Connection system for solvent weld and threaded joints
- Valve material compatibility (PVC-U) with water, drinking water and other food substance conveyance according to current regulations
- PN16 True Union valve body made for PVC-U injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
- Easy radial dismounting and fully interchangeable with VEE and VXE 65-100 valve models
- Union nut profile that perfectly adapts to the Easyfit multifunctional handle hooked insert (available as an accessory) that lets you control union nut rotation
- Vertical (preferable for SXE model) and horizontal installation potential
