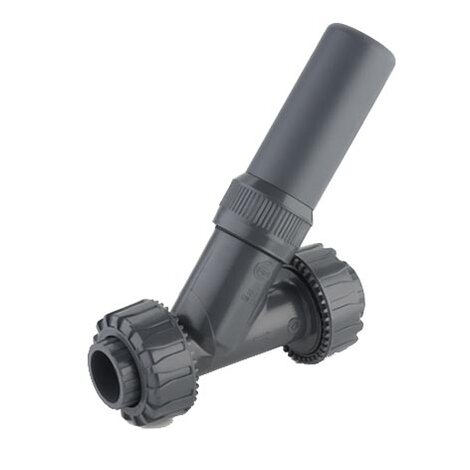

SVUIV - ZAWÓR UPUSTOWY

Zawór upustowy ze śrubunkami z końcówkami mufowymi do wklejenia
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.

product.detail.headline.features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Machined high surface finish ball that guarantees a smooth operation and increased reliability
Wróć do listy produktów

EPDM

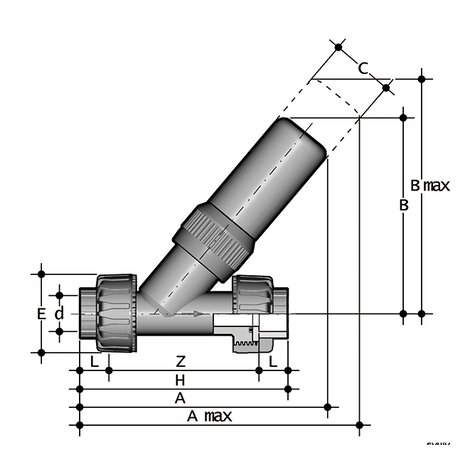

Indeks - Wymiar Kategoria produktu System Materiał d DN A Amax B product.detail.attribute.B max C E H L Z Masa
g/szt.
SVUIV020E - - System PVC-U System PVC-U PVC-U 20 15 153 193 118 170 34 55 135 16 103 391
SVUIV025E - - System PVC-U System PVC-U PVC-U 25 20 191 271 150 220 40 66 158 19 120 633
SVUIV032E - - System PVC-U System PVC-U PVC-U 32 25 226 296 175 230 48 75 176 22 132 1106

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN A Amax B product.detail.attribute.B max C E H L Z Masa
g/szt.
SVUIV020F - - System PVC-U System PVC-U PVC-U 20 15 153 193 118 170 34 55 135 16 103 391
SVUIV025F - - System PVC-U System PVC-U PVC-U 25 20 191 271 150 220 40 66 158 19 120 633
SVUIV032F - - System PVC-U System PVC-U PVC-U 32 25 226 296 175 230 48 75 176 22 132 1106
  • Connection system for solvent weld, threaded and flanged joints
  • Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
  • Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
  • PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of dismounting downstream pipes with the valve in the closed position
  • Floating full bore ball with high surface finish
  • Integrated bracket for valve anchoring
  • Ball seat carriers can be adjusted using the Easytorque adjustment kit
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
