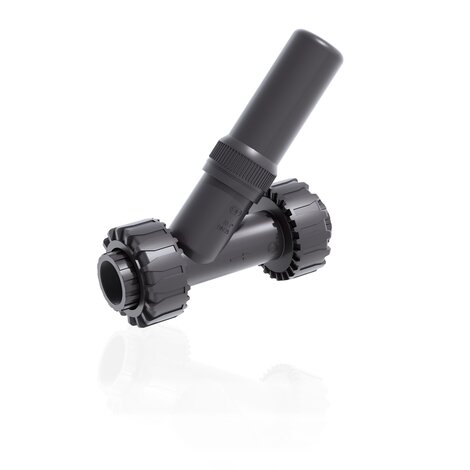

SVUFV - ZAWÓR UPUSTOWY
Zawór upustowy ze śrubunkami z przyłączami gwintowanymi BS
Opracowane przez FIP zawory kulowe VKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. VKD to zawór z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.
product.detail.headline.features:
- Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier.
- Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
- Robust integrated bracket for valve anchoring, for easy and quick automation even after valve installation on the system via the Power Quick module (optional)
- DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
- Machined high surface finish ball that guarantees a smooth operation and increased reliability
EPDM

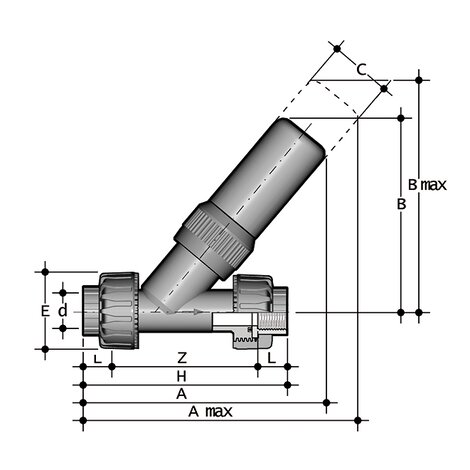

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | R | DN | A | Amax | B | product.detail.attribute.B max | C | E | H | L | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SVUFV012E | - | - | System PVC-U | System PVC-U | PVC-U | 1/2" | 15 | 153 | 193 | 118 | 170 | 34 | 55 | 135 | 15,0 | 112,0 | 391 |
| SVUFV034E | - | - | System PVC-U | System PVC-U | PVC-U | 3/4" | 20 | 191 | 271 | 150 | 220 | 40 | 66 | 158 | 16,3 | 126,4 | 633 |
| SVUFV100E | - | - | System PVC-U | System PVC-U | PVC-U | 1" | 25 | 226 | 296 | 175 | 230 | 48 | 75 | 176 | 19,1 | 144,8 | 1106 |
FKM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | R | DN | A | Amax | B | product.detail.attribute.B max | C | E | H | L | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SVUFV012F | - | - | System PVC-U | System PVC-U | PVC-U | 1/2" | 15 | 153 | 193 | 118 | 170 | 34 | 55 | 135 | 15,0 | 112,0 | 391 |
| SVUFV034F | - | - | System PVC-U | System PVC-U | PVC-U | 3/4" | 20 | 191 | 271 | 150 | 220 | 40 | 66 | 158 | 16,3 | 126,4 | 633 |
| SVUFV100F | - | - | System PVC-U | System PVC-U | PVC-U | 1" | 25 | 226 | 296 | 175 | 230 | 48 | 75 | 176 | 19,1 | 144,8 | 1106 |
- Connection system for solvent weld, threaded and flanged joints
- Patented SEAT STOP® ball carrier system that lets you micro-adjust ball seats and minimise the axial force effect
- Easy radial dismounting allowing quick replacement of O-rings and ball seats without any need for tools
- PN16 True Union valve body made for rigid PVC-U injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
- Option of dismounting downstream pipes with the valve in the closed position
- Floating full bore ball with high surface finish
- Integrated bracket for valve anchoring
- Ball seat carriers can be adjusted using the Easytorque adjustment kit
- Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
