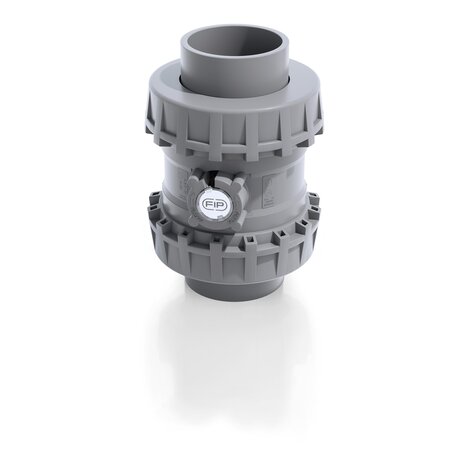

SSEAC - ZAWÓR ZWROTNY ZE SPRĘŻYNĄ TRUE UNION EASYFIT
Zawór zwrotny ze sprężyną Easyfit ze śrubunkami z końcówkami mufowymi do wklejenia ASTM
Zawór zwrotny SSE Easyfit ze sprężyną opracowany przez Giugiaro Design wyróżnia się innowacyjnym sposobem montażu, który gwarantuje niezawodną pracę przez długi okres czasu. Dodatkowo na korpusie znajduje się okienko z wymienną etykietą pozwalającą na opis lokalizacji zaworu na instalacji.
product.detail.headline.features:
- Customisable Labelling System: built-in LCE module on the valve body made up of transparent protection plug and customisable tag holder using the LSE set (available as accessory). The customisation potential lets you identify the valve on the system according to specific needs
- Locked ball seat carrier safe dismounting for maintenance with the Easyfit multifunctional handle
- Ideal for horizontal installations: perfect seal even with low back pressure. Silent and durable even with strong vibrations and pulsating fluid
- PVC-U shutter and springs available in STAINLESS Steel 316, A316 PTFE encapsulated: maximum reliability in a wide field of applications from salt water to aggressive acids
EPDM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | E | H | L | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSEAC400E | - | - | System PVC-C | System PVC-C | PVC-C | 4” | 100 | 16 | 212 | 283 | 57,5 | 168 | 5870 |
| SSEAC212E | - | - | System PVC-C | System PVC-C | PVC-C | 2” 1/2 | 65 | 16 | 157 | 211 | 44,5 | 122 | 2654 |
| SSEAC300E | - | - | System PVC-C | System PVC-C | PVC-C | 3” | 80 | 16 | 174 | 248 | 48 | 152 | 3321 |
FKM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | E | H | L | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SSEAC212F | - | - | System PVC-C | System PVC-C | PVC-C | 2” 1/2 | 65 | 16 | 157 | 211 | 44,5 | 122 | 2654 |
| SSEAC300F | - | - | System PVC-C | System PVC-C | PVC-C | 3” | 80 | 16 | 174 | 248 | 48 | 152 | 3321 |
| SSEAC400F | - | - | System PVC-C | System PVC-C | PVC-C | 4” | 100 | 16 | 212 | 283 | 57,5 | 168 | 5870 |
- Connection system for solvent weld and threaded joints
- Valve material compatibility (PVC-C) with water conveyance, drinking water and other food substances according to current regulations
- PN16 True Union valve body made for PVC-C injection moulding and European Directive 2014/68/EU (PED) compliant for pressurised equipment. ISO 9393 compliant test requirements
- Easy radial disassembly and fully interchangeable with VXE 65-100 valve models
- Union nut profile that perfectly adapts to the Easyfit multifunctional handle hooked insert (available as an accessory) that lets you control union nut rotation
- Can be installed in either a vertical or horizontal position
