RIV

ZŁĄCZKI DO KLEJENIA - REDUKCYJNE
Redukcja długa do klejenia (fig. A)
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem, łączonych za pomocą klejenia przy użyciu odpowiedniego kleju i czyściwa.
Wróć do listy produktów

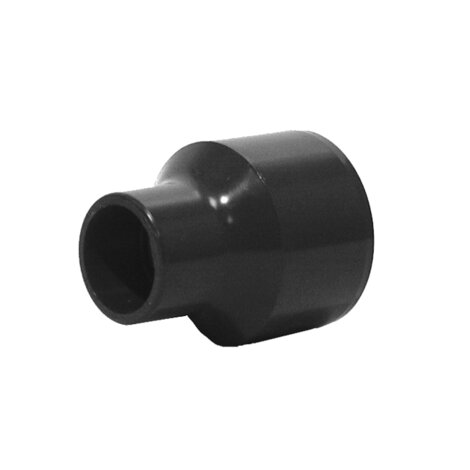

Immagine del raccordo per incollaggio - riduzioni RIV

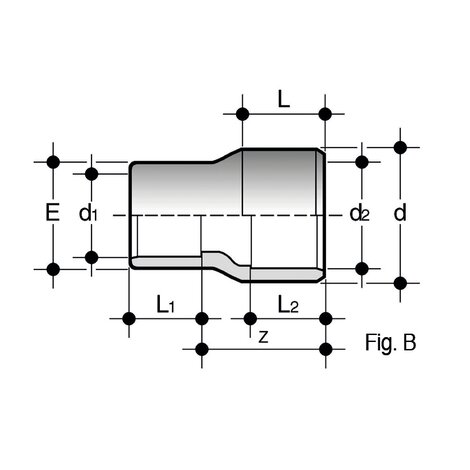

Disegno tecnico del raccordo per incollaggio - riduzioni RIV fig. B
Immagine del raccordo per incollaggio - riduzioni RIV
Disegno tecnico del raccordo per incollaggio - riduzioni RIV fig. B
Indeks - Wymiar Kategoria produktu System Materiał Typ product.detail.attribute.d x d[5:2] x d[5:1] PN E L L1 product.detail.attribute.L[5:2] Z Masa
g/szt.
RIV025020016 - - System PVC-U System PVC-U PVC-U IF 25 x 20 x 16 16 22 19 14 16 24,5 9
RIV025020020 - - System PVC-U System PVC-U PVC-U IF 25 x 20 x 20 16 26 19 16 16 24,5 12
RIV032025016 - - System PVC-U System PVC-U PVC-U IF 32 x 25 x 16 16 22 22 14 19 30 14
RIV032025020 - - System PVC-U System PVC-U PVC-U IF 32 x 25 x 20 16 27 22 16 19 30 16
RIV032025025 - - System PVC-U System PVC-U PVC-U IF 32 x 25 x 25 16 32 22 19 19 30 20
RIV040032020 - - System PVC-U System PVC-U PVC-U IF 40 x 32 x 20 16 27 26 16 22 36 23
RIV040032025 - - System PVC-U System PVC-U PVC-U IF 40 x 32 x 25 16 32 26 19 22 36 27
RIV040032032 - - System PVC-U System PVC-U PVC-U IF 40 x 32 x 32 16 41 26 22 22 36 34
RIV050040020 - - System PVC-U System PVC-U PVC-U I 50 x 40 x 20 16 27 31 16 26 44 36
RIV050040025 - - System PVC-U System PVC-U PVC-U IF 50 x 40 x 25 16 32 31 19 26 44 40
RIV050040032 - - System PVC-U System PVC-U PVC-U IF 50 x 40 x 32 16 40 31 22 26 44 48
RIV050040040 - - System PVC-U System PVC-U PVC-U IF 50 x 40 x 40 16 48 31 26 26 44 55
RIV063050025 - - System PVC-U System PVC-U PVC-U I 63 x 50 x 25 16 32 38 19 31 54 75
RIV063050032 - - System PVC-U System PVC-U PVC-U IF 63 x 50 x 32 16 40 38 22 31 54 80
RIV063050040 - - System PVC-U System PVC-U PVC-U IF 63 x 50 x 40 16 49 38 26 31 54 90
RIV063050050 - - System PVC-U System PVC-U PVC-U IF 63 x 50 x 50 16 60 38 31 31 54 110
RIV075063050 - - System PVC-U System PVC-U PVC-U IF 75 x 63 x 50 16 61 44 31 38 62 130
RIV075063063 - - System PVC-U System PVC-U PVC-U IF 75 x 63 x63 16 76 44 38 38 62 175
RIV110090050 - - System PVC-U System PVC-U PVC-U I 110 x 90 x 50 16 61 61 31 51 88 260
RIV110090063 - - System PVC-U System PVC-U PVC-U I 110 x 90 x 63 16 76 61 38 51 88 300
RIV110090075 - - System PVC-U System PVC-U PVC-U I 110 x 90 x 75 16 89 61 44 51 88 345
RIV110090090 - - System PVC-U System PVC-U PVC-U IF 110 x 90 x 90 16 104 61 51 51 88 400
