QPV
ZŁĄCZKI DO KLEJENIA - TULEJE KOŁNIERZOWE

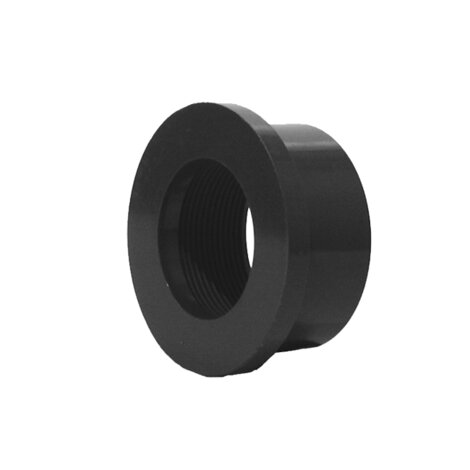

Tuleja kołnierzowa płaska DIN 8063 PN 10/16 do klejenia
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem, łączonych za pomocą klejenia przy użyciu odpowiedniego kleju i czyściwa.

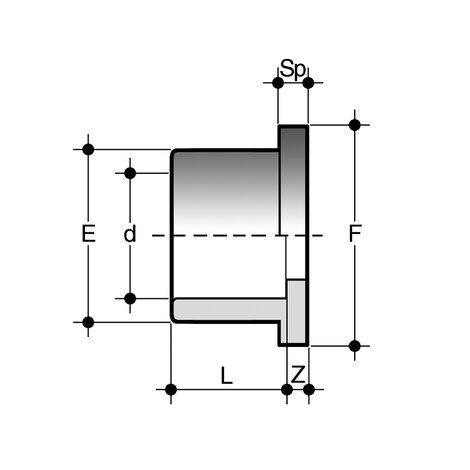

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | E | F | L | Sp | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| QPV020 | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 16 | 27 | 34 | 16 | 7 | 3,5 |
| QPV025 | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 16 | 33 | 41 | 19 | 7 | 3 |
| QPV032 | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 16 | 41 | 50 | 22 | 7 | 3 |
| QPV040 | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 16 | 50 | 61 | 26 | 8 | 3 |
| QPV050 | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 16 | 31 | 73 | 31 | 8 | 3 |
| QPV063 | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 16 | 76 | 90 | 38 | 9 | 3 |
| QPV075 | - | - | System PVC-U | System PVC-U | PVC-U | 75 | 65 | 16 | 90 | 105 | 44 | 10 | 3 |
| QPV090 | - | - | System PVC-U | System PVC-U | PVC-U | 90 | 80 | 16 | 108 | 125 | 51 | 10 | 5 |
| QPV110 | - | - | System PVC-U | System PVC-U | PVC-U | 110 | 100 | 16 | 131 | 150 | 61 | 12 | 4 |
| QPV125 | - | - | System PVC-U | System PVC-U | PVC-U | 125 | 125 | 16 | 147 | 168 | 69 | 13 | 5 |
| QPV140 | - | - | System PVC-U | System PVC-U | PVC-U | 140 | 125 | 16 | 165 | 188 | 76 | 14 | 5 |
| QPV160 | - | - | System PVC-U | System PVC-U | PVC-U | 160 | 150 | 16 | 188 | 212 | 86 | 16 | 4,5 |
| QPV200 | - | - | System PVC-U | System PVC-U | PVC-U | 200 | 200 | 16 | 230 | 254 | 106 | 18 | 5,5 |
