ZŁĄCZKI DO ZGRZEWANIA MUFOWEGO - ŚRUBUNKI

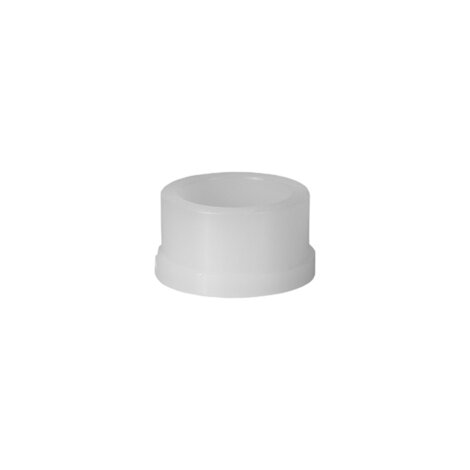

Union end for socket welding, metric series
Series of fittings designed for conveying fluids under pressure with a hot weld connection system (socket welding).

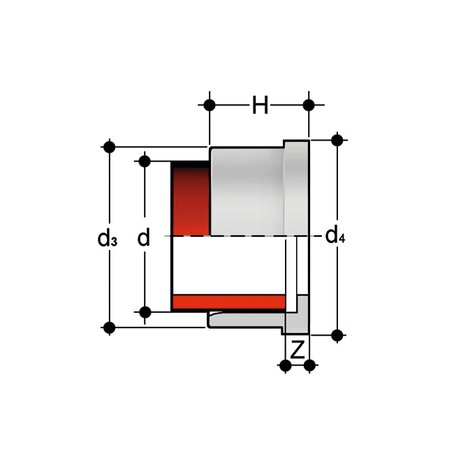

| Indeks | - | Wymiar | Kategoria produktu | Materiał | d | PN | d3 | d4 | H | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QBIGF020 | - | - | System PVDF | PVDF | 20 | 16 | 27,5 | 30,1 | 19,5 | 5,5 | 13 |
| QBIGF025 | - | - | System PVDF | PVDF | 25 | 16 | 36 | 38,8 | 21,5 | 5,5 | 27 |
| QBIGF032 | - | - | System PVDF | PVDF | 32 | 16 | 41,5 | 44,7 | 23,5 | 5,5 | 32 |
| QBIGF040 | - | - | System PVDF | PVDF | 40 | 16 | 53 | 56,5 | 25,5 | 5,5 | 57 |
| QBIGF050 | - | - | System PVDF | PVDF | 50 | 16 | 59 | 62,6 | 28,5 | 5,5 | 57 |
| QBIGF063 | - | - | System PVDF | PVDF | 63 | 16 | 74 | 78,4 | 32,5 | 5,5 | 97 |
