Q/BFX
ADAPTOR FOR SOCKET WELDING - SS A316L UNION ENDS
Union end in A316L STAINLESS steel with female BSP thread
Series of fittings designed for conveying fluids under pressure with a hot thread and weld connection system (socket welding).

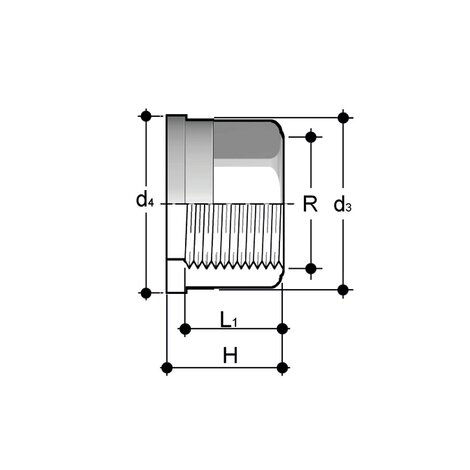

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | R | d3 | d4 | H | L1 | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| QBFX038 | - | - | System PP-H | System PP-H | PP-H | 3/8" | 22 | 24 | 21,5 | 13,5 | 34 |
| QBFX012 | - | - | System PP-H | System PP-H | PP-H | 1/2" | 27,5 | 30,1 | 22,5 | 16,5 | 54 |
| QBFX034 | - | - | System PP-H | System PP-H | PP-H | 3/4" | 36 | 38,8 | 25,5 | 18,5 | 104 |
| QBFX100 | - | - | System PP-H | System PP-H | PP-H | 1" | 41,5 | 44,7 | 27,5 | 19,5 | 130 |
| QBFX114 | - | - | System PP-H | System PP-H | PP-H | 1"1/4 | 53 | 56,5 | 30,5 | 21,5 | 234 |
| QBFX112 | - | - | System PP-H | System PP-H | PP-H | 1"1/2 | 59 | 62,6 | 33,5 | 23 | 293 |
| QBFX200 | - | - | System PP-H | System PP-H | PP-H | 2" | 74 | 78,4 | 38,5 | 27 | 520 |
