MIF
ZŁĄCZKI DO ZGRZEWANIA MUFOWEGO - RÓWNOPRZELOTOWE

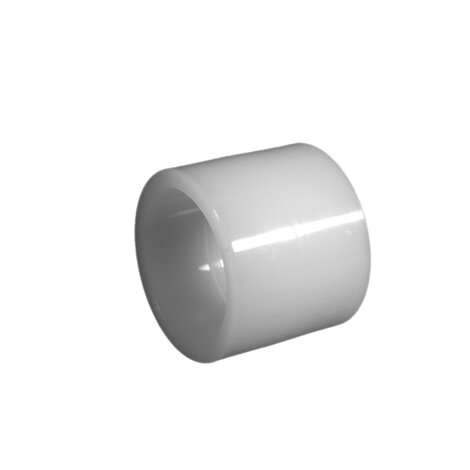

Śrubunek do zgrzewania mufowego
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem łączonych metodą zgrzewania mufowego.

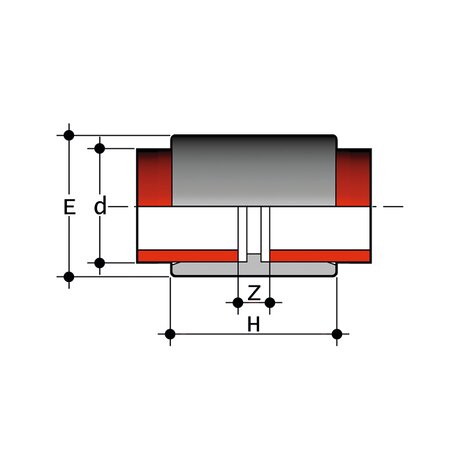

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | PN | E | H | Z | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MIF020 | - | - | System PVDF | System PVDF | PVDF | 20 | 16 | 28 | 36 | 7 | 20 |
| MIF025 | - | - | System PVDF | System PVDF | PVDF | 25 | 16 | 33 | 40 | 8 | 28 |
| MIF032 | - | - | System PVDF | System PVDF | PVDF | 32 | 16 | 42 | 44 | 8 | 48 |
| MIF040 | - | - | System PVDF | System PVDF | PVDF | 40 | 16 | 51 | 49 | 8 | 70 |
| MIF050 | - | - | System PVDF | System PVDF | PVDF | 50 | 16 | 63 | 55 | 8 | 120 |
| MIF063 | - | - | System PVDF | System PVDF | PVDF | 63 | 16 | 77 | 64 | 9 | 185 |
| MIF075 | - | - | System PVDF | System PVDF | PVDF | 75 | 16 | 90 | 72 | 10 | 275 |
| MIF090 | - | - | System PVDF | System PVDF | PVDF | 90 | 16 | 108 | 79 | 8 | 415 |
| MIF110 | - | - | System PVDF | System PVDF | PVDF | 110 | 16 | 131 | 84 | 11 | 710 |
