M9.10.PX - M9.10.WX

Dual Analog Monitor and Transmitter
Dual Analog Monitor and Transmitter

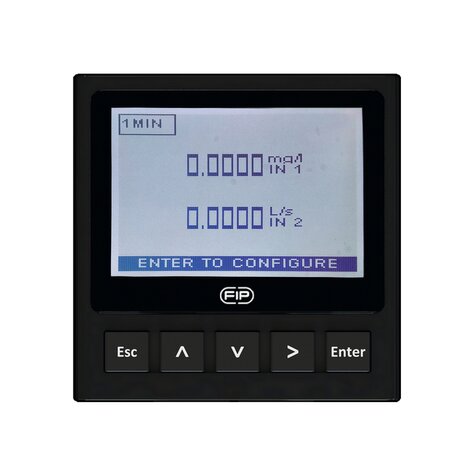

FLS M9.10 is a powerful monitor and transmitter designed to manage analog and frequency signals (or two analog signals) from every types of device which provide a 4-20mA or a frequency output. M9.10 is equipped with a wide full graphic display 4” which shows measured values clearly and a lot of other useful information. Moreover, due to a multicolor display plus a powerful backlight, measurement status can be determined easily from afar also. A tutorial software guarantees a mistake-proof and fast set up of every parameters. Calibration of 4-20mA input can be performed just fixing 2 points as well as 1 point or using a reference value through a new “in-line calibration”. Calibration of frequency input can be performed just fixing installation features or using a reference value through a new “in-line calibration”. Two independent 4-20mA outputs are available to remote measures to external devices. A proper combination of digital outputs (2*SSR and 2*relays) allows customized setups for any process to be controlled. The USB port on the rear part allows the upgrade of software offering a wide range of customization services both standard and on request.
Wróć do listy produktów
M9.10.PX - M9.10.WX
Indeks - Wymiar Kategoria produktu System Miejsce
montażu
Napięcie Ilość
przewodów
Rodzaj pomiaru Sygnał wyjściowy Masa
gr/szt.
M9.10.P1 - - Automatyka Automatyka Panel 12 - 24 VCC 3/4 wire 2* (4-20mA) 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) 550
M9.10.W1 - - Automatyka Automatyka Wall 12 - 24 VCC 3/4 wire 2* (4-20mA) 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) 650
M9.10.W2 - - Automatyka Automatyka Wall 110 - 230 VCA 3/4 wire 2* (4-20mA) 2*(4-20mA) $ 2*(S.S.R.) $ 2* (mech. relay) 750
  • APPLICATIONS • Industrial waste water treatment • Civil waste water treatment • Water treatment processes • Processing and Manufacturing industry • Chemical processing • Industrial environment with electromagnetic interferences MAIN FEATURES • Wide graphic display • Multicolor backlight • Help on board • Simultaneous visualization of two parameters • Free setting of engineering unit • Intuitive calibration procedure • In line adjustment • Able to handle active and passive analog signal • USB port for software upgrading
