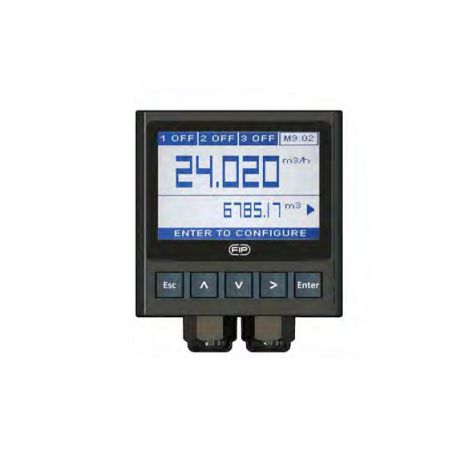

M9.02.PX - M9.02.WX
Flow Monitor and Transmitter
Flow Monitor and Transmitter
FLS M9.02 is a
powerful flow monitor designed
to convert the frequency signal
of FLS flow sensors into a
flow rate. M9.02 is equipped
with a wide full graphic display
4” which shows measured
values clearly and a lot of other
useful information. Moreover,
due to a multicolor display
plus a powerful backlight,
measurement status can
be determined easily from
afar also. A tutorial software
guarantees a mistake-proof
and fast set up of every
parameters. Calibration can
be performed just fixing
installation features or using a
reference value through a new
“in-line calibration”. A 4-20mA
output is available to remote
flow rate to a external device.
A proper combination of digital
outputs allows customized
setups for any process to
be controlled. The USB port
on the rear part allows the
upgrade of software offering
a wide range of customization
services both standard and on
request
| Indeks | - | Wymiar | Kategoria produktu | System | Miejsce montażu |
Napięcie | Ilość przewodów |
Rodzaj pomiaru | Sygnał wyjściowy | Masa gr/szt. |
|---|---|---|---|---|---|---|---|---|---|---|
| M9.02.P1 | - | - | Automatyka | Automatyka | Panel | 12 - 24 VCC | 3/4 wire | Flow (Frequency) | 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) | 500 |
| M9.02.W1 | - | - | Automatyka | Automatyka | Wall | 12 - 24 VCC | 3/4 wire | Flow (Frequency) | 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) | 550 |
| M9.02.W2 | - | - | Automatyka | Automatyka | Wall | 110 - 230 VCA | 3/4 wire | Flow (Frequency) | 1* (4-20 mA) $ 2* (S.S.R.) $ 1* (mech. relay) | 650 |
- APPLICATIONS • Water treatment systems • Industrial waste water treatment and recovery • Water distribution • Filtration systems • Swimming pools & SPA • Irrigation & Fertigation • Leak detection • Cooling water monitoring • Processing and manufacturing industry • Chemical production MAIN FEATURES • Wide full graphic display • Multicolor backlight • Help on board • Installation flexibility • Fast, intuitive and mistake-proof calibration software • Mechanical relay for external device control • Solid State Relays for programmable alarms • Multilanguage menu • USB port for software upgrading
