LSQTPNP
PNEUMATICALLY ACTUATED VALVES

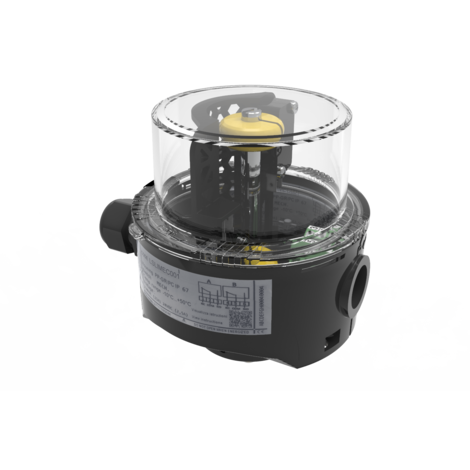

IP68 box containing two inductive PNP (3 wire) microswitches with configurable optical indicator
MAGNUM 3G is completed with a range of tools and accessories to help the installer
product.detail.headline.features:
- Upper part (PVC-U)
- Bottom part (PVC-U)
- Bolts (zinc plated steel)
- Nuts (zinc plated steel )
- Gasket (NBR)
- Reinforcing ring (Stainless steel)
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | product.detail.attribute.To be used | DN |
|---|---|---|---|---|---|---|---|
| LSQTPNP | - | - | Akcesoria do zaworów automatycznych PVC-U, PVC-C, PP-H, PVDF | Części specjalne i akcesoria | PVC-U/PVC-C/PP-H/PVDF | VXE | 65 ÷ 100 |
- The reinforcing bush are used to reinforce the pipe PE100 (SDR11) e PE-X, to elong the lifetime of the pipeline and to reduce the collapse risk of the pipe in disadvantages conditions. They use is particurarly suggested using PE-X pipes. The two tightening keys (d.16-63 and d.75-110) are important tools to install the MAGNUM 3G fittings
