LKDDM - ZAWÓR KULOWY 3-DROŻNY DUAL BLOCK®

Zawór 3-drożny DUAL BLOCK® kulowy (kula "L") ze śrubunkami z końcówkami nyplowymi do zgrzewania mufowego
Opracowane przez FIP zawory kulowe TKD DUAL BLOCK® prezentują najwyższy standard w projektowaniu armatury z materiałów termoplastycznych. TKD to zawór rozdzielająco-mieszający z uniwersalnymi śrubunkami True Union, który spełnia najbardziej rygorystyczne wymagania w zastosowaniach przemysłowych.

product.detail.headline.features:

  • Ergonomic HIPVC handle equipped with removable tool to adjust the ball seat carrier. Possibility of installing the LTKD stroke limiter (available as an accessory) that permits ball and handle rotation only for set opening and closing angles at 90° or 180°
  • Handle lock 0°- 90° SHKD (available as an accessory) ergonomically operable during service and padlockable
  • DUAL BLOCK® patented lock system that ensures union nut tightening hold even in severe conditions such as vibrations or heat dilation
  • Ball shutter high surface finish with floating type full passage with T or L port
  • 4 PTFE ball seat system that compensates axial force guaranteeing optimal manageability and long working life
Wróć do listy produktów

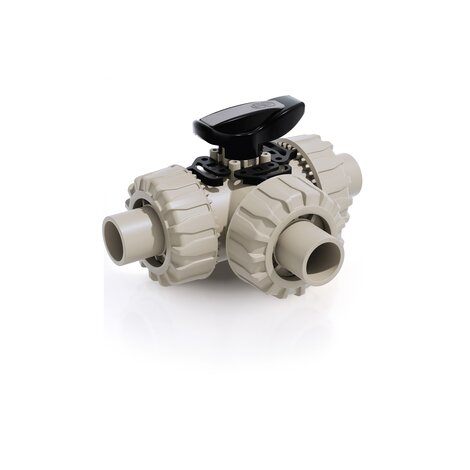

Immagine della TKD DN 15:50 - Valvola a sfera a tre vie DUAL BLOCK® in PP-H
Disegno tecnico TKDDM DN 15:50 in PP-H
Immagine della TKD DN 15:50 - Valvola a sfera a tre vie DUAL BLOCK® in PP-H
Disegno tecnico TKDDM DN 15:50 in PP-H

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN E H product.detail.attribute.H[5:1] L Masa
g/szt.
LKDDM020E - - System PP-H System PP-H PP-H 20 15 10 54 140 80 16 205
LKDDM025E - - System PP-H System PP-H PP-H 25 20 10 65 175 100 18 360
LKDDM032E - - System PP-H System PP-H PP-H 32 25 10 73 188 110 20 515
LKDDM040E - - System PP-H System PP-H PP-H 40 32 10 86 220 131 22 835
LKDDM050E - - System PP-H System PP-H PP-H 50 40 10 98 251 148 23 1100
LKDDM063E - - System PP-H System PP-H PP-H 63 50 10 122 294 179 29 1830

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN E H product.detail.attribute.H[5:1] L Masa
g/szt.
LKDDM020F - - System PP-H System PP-H PP-H 20 15 10 54 140 80 16 205
LKDDM025F - - System PP-H System PP-H PP-H 25 20 10 65 175 100 18 360
LKDDM032F - - System PP-H System PP-H PP-H 32 25 10 73 188 110 20 515
LKDDM040F - - System PP-H System PP-H PP-H 40 32 10 86 220 131 22 835
LKDDM050F - - System PP-H System PP-H PP-H 50 40 10 98 251 148 23 1100
LKDDM063F - - System PP-H System PP-H PP-H 63 50 10 122 294 179 29 1830
  • Connection system for weld and threaded joints
  • Patented SEAT STOP® ball seat carrier system that lets you micro-adjust ball seats and minimise axial force effects
  • Easy radial disassembly allowing quick replacement of O-rings and ball seats without any need for tools
  • PN10 True Union valve body made for PP-H injection moulding equipped with built-in bores for actuation. ISO 9393 compliant test requisites
  • Option of disassembling downstream pipes with the valve in the closed position
  • High surface finish stem with double O-Ring and double groove ball connection, equipped with optical position indicator for correct handle installation
  • Integrated bracket for valve anchoring
  • Possibility of installing pneumatic and/or electric actuators thanks to the robust integrated bracket for valve anchoring for easy and quick automation using the Power Quick module (optional)
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
