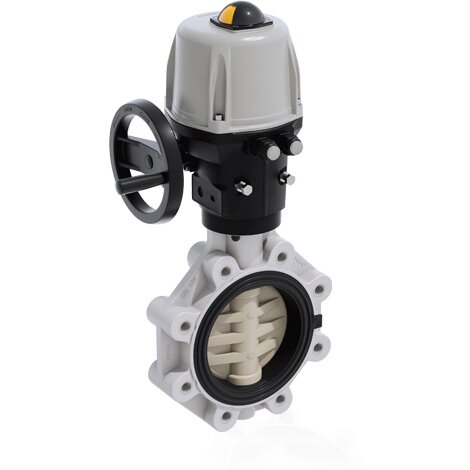

FKOM/CE 24V AC/DC LUG ANSI DN 125-200 - PRZEPUSTNICA Z SIŁOWNIKIEM ELEKTRYCZNYM

Przepustnica z siłownikiem elektrycznym 24 V AC/DC, wersja LUG ANSI
FK to przepustnica międzykołnierzowa do odcinania lub regulacji przepływu. Charakterystyka konstrukcyjna czyni ją idealną do zastosowań przemysłowych wymagających wysokiej wydajności i długotrwałej niezawodności
In addition to the manually actuated version, FK is also available in FK/CE electrically actuated and FK/CP pneumatically actuated configurations. FK/CE and FK/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products.

product.detail.headline.features:

  • Electric actuator constructed according to FIP specifications; with plastic shell and standard emergency override. Available with voltages from 12 to 240V.
  • Rack & pinion type pneumatic actuator constructed according to FIP specifications: fully protected against weather corrosion available in double-acting (DA) or simple-acting normally closed (NC) or normally open (NO) versions.
  • Square section stailnless steel stem completely isolated from the fluid.
  • Body in fibreglass reinforced polypropylene based compound (PP-GR) UV resistant and characterised by high mechanical resistance.
  • Drilling pattern with oval slots that allow coupling to flanges according to numerous international standards. The special self-centring inserts in ABS supplied for DN 40Ă·200 guarantee the correct axial alignment of the valve during installation. For DN 250Ă·400 valves, the drilling pattern for the self-centring system is of the traditional type according to DIN and ANSI standards.
  • Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
Wróć do listy produktów

EPDM

Indeks - product.detail.attribute.introTextActuatedVersions Wymiar Kategoria produktu System Materiał d DN PN product.detail.attribute.B2 H Z product.detail.attribute.ΦA f U product.detail.attribute.B7 product.detail.attribute.T1 product.detail.attribute.T2 product.detail.attribute.T3 Masa
g/szt.
FKOALMEL500E - In addition to the manually actuated version, FK is also available in FK/CE electrically actuated and FK/CP pneumatically actuated configurations. FK/CE and FK/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products. - Automatyka Automatyka PP-H 5'' 125 10 120 240 64 215.9 3/4'' 8 425 - - - 9650
FKOALMEL600E - In addition to the manually actuated version, FK is also available in FK/CE electrically actuated and FK/CP pneumatically actuated configurations. FK/CE and FK/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products. - Automatyka Automatyka PP-H 6'' 150 10 134 268 70 241.3 3/4'' 8 438 - - - 10400
FKOALMEL800E - In addition to the manually actuated version, FK is also available in FK/CE electrically actuated and FK/CP pneumatically actuated configurations. FK/CE and FK/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products. - Automatyka Automatyka PP-H 8'' 200 10 161 323 71 298,4 3/4'' 8 485 - - - 13100

FKM

Indeks - product.detail.attribute.introTextActuatedVersions Wymiar Kategoria produktu System Materiał d DN PN product.detail.attribute.B2 H Z product.detail.attribute.ΦA f U product.detail.attribute.B7 product.detail.attribute.T1 product.detail.attribute.T2 product.detail.attribute.T3 Masa
g/szt.
FKOALMEL500F - In addition to the manually actuated version, FK is also available in FK/CE electrically actuated and FK/CP pneumatically actuated configurations. FK/CE and FK/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products. - Automatyka Automatyka PP-H 5'' 125 10 120 240 64 215.9 3/4'' 8 425 - - - 9650
FKOALMEL600F - In addition to the manually actuated version, FK is also available in FK/CE electrically actuated and FK/CP pneumatically actuated configurations. FK/CE and FK/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products. - Automatyka Automatyka PP-H 6'' 150 10 134 268 70 241.3 3/4'' 8 438 - - - 10400
FKOALMEL800F - In addition to the manually actuated version, FK is also available in FK/CE electrically actuated and FK/CP pneumatically actuated configurations. FK/CE and FK/CP are constructed with actuators meeting current regulations and selected by FIP according to their quality and reliability requirements. The efficiency of these valves, tested according to the company’s quality standards, is guaranteed by the expertise and know-how that FIP dedicates to manufacturing its products. - Automatyka Automatyka PP-H 8'' 200 10 161 323 71 298,4 3/4'' 8 485 - - - 13100
  • PVC-U, PVCC, PP-H, ABS and PVDF through shaft disk
  • Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40Ă·200 Medium Series 25, DN 250Ă·300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN 65Ă·200 K2, DN 250Ă·300 K3)
  • Can also be installed as an end line valve, bottom discharge valve or tank dump valve
  • Special Lug version PN 10 fully drilled to DIN 2501 or ANSI B16.5 cl.150 with molded-in AISI 316 stainless steel threaded inserts
  • Valve material compatibility with water conveyance, drinking water and other food substances according to current regulations
  • Possibility of installing pneumatic and/or electric actuators by applying ISO standard drilling PP-GR flanges. DN 40Ă·200 valve fitted with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, F07, F10. DN 250Ă·400 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components drilled according to standard ISO 5211 F10 (excluding DN 350Ă·400), F12, F14.
