FKOC/LM LUG ANSI - PRZEPUSTNICA MIĘDZYKOŁNIERZOWA

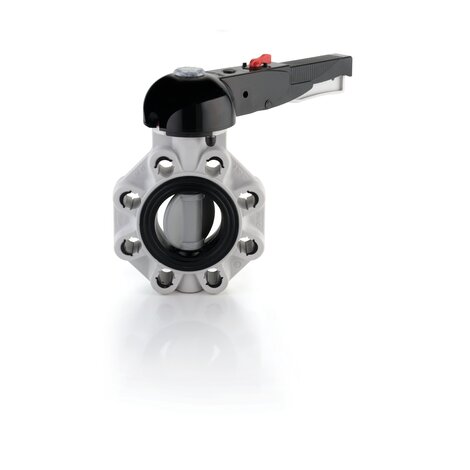

Przepustnica z dźwignią ręczną, wersja Lug ANSI
FK to przepustnica międzykołnierzowa do odcinania lub regulacji przepływu. Charakterystyka konstrukcyjna czyni ją idealną do zastosowań przemysłowych wymagających wysokiej wydajności i długotrwałej niezawodności. Dźwignia zaworu wyposażona jest w okienko z wymienną etykietą pozwalającą na opis np. lokalizacji zaworu na instalacji.

product.detail.headline.features:

  • Ergonomic handle in HIPVC equipped with locking and unlocking device, release, quick operation and graduated adjustment in 10 intermediate positions (DN 40Ă·200). The operating range, starting from the first few degrees of valve opening, also guarantees extremely low pressure drops.
  • Customisable Labelling System: integrated module in the handle, made of a transparent protection plug and a customisable tag holder using the LSE set (available as an accessory). The customisation lets you identify the valve on the system according to specific needs.
  • STAINLESS steel square section stem completely isolated from the fluid complying with standardÂŁISO 5211:ÂŁDN 40Ă·65: 11 mmÂŁDN 80Ă·100: 14 mmÂŁDN 125Ă·150: 17 mmÂŁDN 200: 22 mmÂŁDN 250Ă·300: 27 mm
  • Body in polypropylene based compound reinforced with fibreglass (PP-GR) resistant to UV rays and characterised by high mechanical strength.
  • Drilling pattern using oval slots that allow coupling to flanges according to numerous international standards. The special self-centring inserts in ABS supplied for DN 40Ă·200 guarantee the correct axial alignment of the valve during installation. For DN 250Ă·400 valves, the drilling pattern for the selfcentring system is of the traditional type according to DIN and ANSI standards.
  • Interchangeable liner with the dual function of forming a hydraulic seal and isolating the body from the fluid.
Wróć do listy produktów

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN product.detail.attribute.øA B1 B2 C C1 f H U Z Masa
g/szt.
FKOALCLM212E - - System PVC-C System PVC-C PVC-C 2” 1/2 65 10 139,7 119 80 175 110 5/8” 165 4 46 1554
FKOALCLM300E - - System PVC-C System PVC-C PVC-C 3” 80 10 152,4 133 93 175 110 5/8” 185 12 49 2342
FKOALCLM400E - - System PVC-C System PVC-C PVC-C 4” 100 10 190,5 147 107 272 110 5/8” 211 8 56 3257
FKOALCLM500E - - System PVC-C System PVC-C PVC-C 5” 125 10 215,9 167 120 330 110 3/4” 240 8 64 4345
FKOALCLM600E - - System PVC-C System PVC-C PVC-C 6” 150 10 241,3 180 134 330 110 3/4” 268 8 70 5820
FKOALCLM800E - - System PVC-C System PVC-C PVC-C 8” 200 10 298,4 227 161 420 122 3/4” 323 8 71 8896

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN product.detail.attribute.øA B1 B2 C C1 f H U Z Masa
g/szt.
FKOALCLM212F - - System PVC-C System PVC-C PVC-C 2” 1/2 65 10 139,7 119 80 175 110 5/8” 165 4 46 1554
FKOALCLM300F - - System PVC-C System PVC-C PVC-C 3” 80 10 152,4 133 93 175 110 5/8” 185 12 49 2342
FKOALCLM400F - - System PVC-C System PVC-C PVC-C 4” 100 10 190,5 147 107 272 110 5/8” 211 8 56 3257
FKOALCLM500F - - System PVC-C System PVC-C PVC-C 5” 125 10 215,9 167 120 330 110 3/4” 240 8 64 4345
FKOALCLM600F - - System PVC-C System PVC-C PVC-C 6” 150 10 241,3 180 134 330 110 3/4” 268 8 70 5820
FKOALCLM800F - - System PVC-C System PVC-C PVC-C 8” 200 10 298,4 227 161 420 122 3/4” 323 8 71 8896

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN product.detail.attribute.øA B1 B2 C C1 f H U Z Masa
g/szt.
FKOALCLM212F0SF - - System PVC-C System PVC-C PVC-C 2” 1/2 65 10 139,7 119 80 175 110 5/8” 165 4 46 1554
FKOALCLM300F0SF - - System PVC-C System PVC-C PVC-C 3” 80 10 152,4 133 93 175 110 5/8” 185 12 49 2342
FKOALCLM400F0SF - - System PVC-C System PVC-C PVC-C 4” 100 10 190,5 147 107 272 110 5/8” 211 8 56 3257
FKOALCLM500F0SF - - System PVC-C System PVC-C PVC-C 5” 125 10 215,9 167 120 330 110 3/4” 240 8 64 4345
FKOALCLM600F0SF - - System PVC-C System PVC-C PVC-C 6” 150 10 241,3 180 134 330 110 3/4” 268 8 70 5820
  • Interchangeable Disk in PVC-C with through shaft, available in different thermoplastic materials: PVC-U, PP-H, ABS, PVDF
  • Overall dimensions of the valve in accordance with standard ISO 5752 (DN 40Ă·200 Medium Series 25, DN 250Ă· 300 Long Series 16) and DIN 3202 K2 and ISO 5752 (DN 65Ă·200 K2, DN 250Ă·300 K3)
  • Can also be installed as an end line valve, bottom discharge valve or tank dump valve
  • Special Lug version PN 10 fully drilled to DIN 2501 or ANSI B16.5 cl.150 with molded-in AISI 316 stainless steel threaded inserts
  • Possibility of installing a manual reducer or pneumatic and/or electric actuators by applying ISO standard drilling pattern PP-GR flanges. DN 40 Ă· 200 valve fitted with plate with rack in PP-GR. For actuated versions with flange drilled according to ISO 5211 F05, F07, F10
  • DN 250Ă·300 valve, fitted with one-piece top flange in high mechanical strength PP-GR with mounting flange for internal components with drilling according to standard ISO 5211 F10, F12, F14
  • Possibility to have handle with integrated LSQT limit micro switch, even as a retrofit in existing installations
