DKUIM - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®

Zawór membranowy DIALOCK® ze śrubunkami z końcówkami mufowymi do zgrzewania mufowego
Zawory membranowe DIALOCK® szczególnie nadają się do zamykania i regulowania przepływu abrazyjnych i zanieczyszczonych cieczy. Nowa geometria wewnętrzna korpusu optymalizuje dynamikę płynu zwiększając przepływ i gwarantując optymalną liniowość krzywej regulacji. Zawory DK są wyjątkowo kompaktowe i bardzo lekkie. Innowacyjne pokrętło jest wyposażone w opatentowany ergonomiczny system blokowania, który pozwala wyregulować i zablokować zawór w dowolnej pozycji.

product.detail.headline.features:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Wróć do listy produktów

EPDM

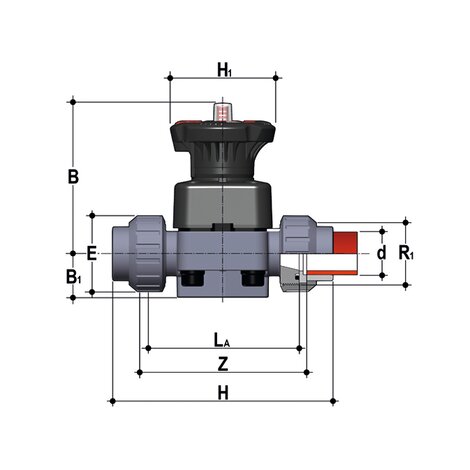

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 E H product.detail.attribute.H[5:1] product.detail.attribute.La R1 Z Masa
g/szt.
DKUIM020E - - System PP-H System PP-H PP-H 20 15 10 102 25 41 129 80 90 1" 100 457
DKUIM025E - - System PP-H System PP-H PP-H 25 20 10 105 30 50 154 80 108 1"1/4 116 500
DKUIM032E - - System PP-H System PP-H PP-H 32 25 10 114 33 58 168 80 116 1"1/2 124 695
DKUIM040E - - System PP-H System PP-H PP-H 40 32 10 119 30 72 192 80 134 2" 140 781
DKUIM050E - - System PP-H System PP-H PP-H 50 40 10 149 35 79 222 120 154 2"1/4 160 1557
DKUIM063E - - System PP-H System PP-H PP-H 63 50 10 172 46 98 266 120 184 2"3/4 190 2293

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 E H product.detail.attribute.H[5:1] product.detail.attribute.La R1 Z Masa
g/szt.
DKUIM020F - - System PP-H System PP-H PP-H 20 15 10 102 25 41 129 80 90 1" 100 457
DKUIM025F - - System PP-H System PP-H PP-H 25 20 10 105 30 50 154 80 108 1"1/4 116 500
DKUIM032F - - System PP-H System PP-H PP-H 32 25 10 114 33 58 168 80 116 1"1/2 124 695
DKUIM040F - - System PP-H System PP-H PP-H 40 32 10 119 30 72 192 80 134 2" 140 781
DKUIM050F - - System PP-H System PP-H PP-H 50 40 10 149 35 79 222 120 154 2"1/4 160 1557
DKUIM063F - - System PP-H System PP-H PP-H 63 50 10 172 46 98 266 120 184 2"3/4 190 2293

PTFE

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 E H product.detail.attribute.H[5:1] product.detail.attribute.La R1 Z Masa
g/szt.
DKUIM020P - - System PP-H System PP-H PP-H 20 15 10 102 25 41 129 80 90 1" 100 457
DKUIM025P - - System PP-H System PP-H PP-H 25 20 10 105 30 50 154 80 108 1"1/4 116 500
DKUIM032P - - System PP-H System PP-H PP-H 32 25 10 114 33 58 168 80 116 1"1/2 124 695
DKUIM040P - - System PP-H System PP-H PP-H 40 32 10 119 30 72 192 80 134 2" 140 781
DKUIM050P - - System PP-H System PP-H PP-H 50 40 10 149 35 79 222 120 154 2"1/4 160 1557
DKUIM063P - - System PP-H System PP-H PP-H 63 50 10 172 46 98 266 120 184 2"3/4 190 2293
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
  • reduction in the tightening torque of the screws fixing the actuator to the valve body
  • reduced mechanical stress on all valve components (actuator, body and diaphragm)
  • easy to clean valve interior
  • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
  • operating torque reduction
