DKUFC - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®

Zawór membranowy DIALOCK® ze śrubunkami z końcówkami gwintowanymi BSP
Zawory membranowe DIALOCK® szczególnie nadają się do zamykania i regulowania przepływu abrazyjnych i zanieczyszczonych cieczy. Nowa geometria wewnętrzna korpusu optymalizuje dynamikę płynu zwiększając przepływ i gwarantując optymalną liniowość krzywej regulacji. Zawory DK są wyjątkowo kompaktowe i bardzo lekkie. Innowacyjne pokrętło jest wyposażone w opatentowany ergonomiczny system blokowania, który pozwala wyregulować i zablokować zawór w dowolnej pozycji.

Główne cechy:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Render della valvola a membrana a 2 vie DIALOCK® DKUFC - DN 15:65 in PVC-C
DKUFC - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®
Render della valvola a membrana a 2 vie DIALOCK® DKUFC - DN 15:65 in PVC-C
DKUFC - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®

EPDM

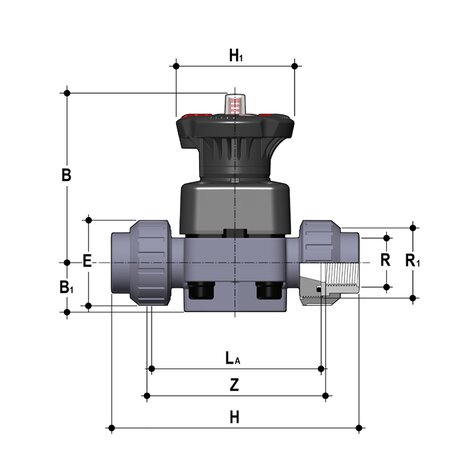

Indeks - Wymiar Kategoria produktu System Materiał R DN PN B B1 E H H1 product.detail.attribute.La R1 Z Masa
g/szt.
DKUFC012E - - System PVC-C System PVC-C PVC-C 1/2" 15 10 102 25 41 131 80 90 1" 97 509
DKUFC034E - - System PVC-C System PVC-C PVC-C 3/4" 20 10 105 30 50 151 80 108 1"1/4 118 576
DKUFC100E - - System PVC-C System PVC-C PVC-C 1" 25 10 114 33 58 165 80 116 1"1/2 127 812
DKUFC114E - - System PVC-C System PVC-C PVC-C 1"1/4 32 10 119 30 72 188 80 134 2" 145 945
DKUFC112E - - System PVC-C System PVC-C PVC-C 1"1/2 40 10 149 35 79 208 120 154 2"1/2 165 1814
DKUFC200E - - System PVC-C System PVC-C PVC-C 2" 50 10 172 46 98 246 120 184 2"3/4 195 2752

FKM

Indeks - Wymiar Kategoria produktu System Materiał R DN PN B B1 E H H1 product.detail.attribute.La R1 Z Masa
g/szt.
DKUFC012F - - System PVC-C System PVC-C PVC-C 1/2" 15 10 102 25 41 131 80 90 1" 97 509
DKUFC034F - - System PVC-C System PVC-C PVC-C 3/4" 20 10 105 30 50 151 80 108 1"1/4 118 576
DKUFC100F - - System PVC-C System PVC-C PVC-C 1" 25 10 114 33 58 165 80 116 1"1/2 127 812
DKUFC114F - - System PVC-C System PVC-C PVC-C 1"1/4 32 10 119 30 72 188 80 134 2" 145 945
DKUFC112F - - System PVC-C System PVC-C PVC-C 1"1/2 40 10 149 35 79 208 120 154 2"1/2 165 1814
DKUFC200F - - System PVC-C System PVC-C PVC-C 2" 50 10 172 46 98 246 120 184 2"3/4 195 2752

PTFE

Indeks - Wymiar Kategoria produktu System Materiał R DN PN B B1 E H H1 product.detail.attribute.La R1 Z Masa
g/szt.
DKUFC012P - - System PVC-C System PVC-C PVC-C 1/2" 15 10 102 25 41 131 80 90 1" 97 509
DKUFC034P - - System PVC-C System PVC-C PVC-C 3/4" 20 10 105 30 50 151 80 108 1"1/4 118 576
DKUFC100P - - System PVC-C System PVC-C PVC-C 1" 25 10 114 33 58 165 80 116 1"1/2 127 812
DKUFC114P - - System PVC-C System PVC-C PVC-C 1"1/4 32 10 119 30 72 188 80 134 2" 145 945
DKUFC112P - - System PVC-C System PVC-C PVC-C 1"1/2 40 10 149 35 79 208 120 154 2"1/2 165 1814
DKUFC200P - - System PVC-C System PVC-C PVC-C 2" 50 10 172 46 98 246 120 184 2"3/4 195 2752
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
  • reduction in the tightening torque of the screws fixing the actuator to the valve body
  • reduced mechanical stress on all valve components (actuator, body and diaphragm)
  • easy to clean valve interior
  • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
  • operating torque reduction
