DKOM - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®

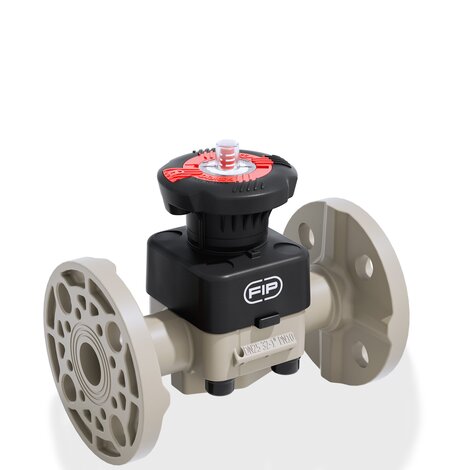

Zawór membranowy DIALOCK® z kołnierzami PN10/16. zg. z EN 558-1
Zawory membranowe DIALOCK® szczególnie nadają się do zamykania i regulowania przepływu abrazyjnych i zanieczyszczonych cieczy. Nowa geometria wewnętrzna korpusu optymalizuje dynamikę płynu zwiększając przepływ i gwarantując optymalną liniowość krzywej regulacji. Zawory DK są wyjątkowo kompaktowe i bardzo lekkie. Innowacyjne pokrętło jest wyposażone w opatentowany ergonomiczny system blokowania, który pozwala wyregulować i zablokować zawór w dowolnej pozycji.

Główne cechy:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Valvola a membrana a 2 vie DIALOCK® DKOM DN 15:65 in PP-H
DKOM - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®
Valvola a membrana a 2 vie DIALOCK® DKOM DN 15:65 in PP-H
DKOM - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 F f H H1 Sp U Masa
g/szt.
DKOM020E - - System PP-H System PP-H PP-H 20 15 10 102 25 65 14 130 80 13,5 4 817
DKOM025E - - System PP-H System PP-H PP-H 25 20 10 105 30 75 14 150 80 13,5 4 850
DKOM032E - - System PP-H System PP-H PP-H 32 25 10 114 33 85 14 160 80 13,5 4 892
DKOM040E - - System PP-H System PP-H PP-H 40 32 10 119 30 100 18 180 80 14 4 1005
DKOM050E - - System PP-H System PP-H PP-H 50 40 10 149 35 110 18 200 120 16 4 1771
DKOM063E - - System PP-H System PP-H PP-H 63 50 10 172 46 125 18 230 120 16 4 2453
DKOM075E - - System PP-H System PP-H PP-H 75 65 10 172 46 145 18 290 120 21 4 2997

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 F f H H1 Sp U Masa
g/szt.
DKOM020F - - System PP-H System PP-H PP-H 20 15 10 102 25 65 14 130 80 13,5 4 817
DKOM025F - - System PP-H System PP-H PP-H 25 20 10 105 30 75 14 150 80 13,5 4 850
DKOM032F - - System PP-H System PP-H PP-H 32 25 10 114 33 85 14 160 80 13,5 4 892
DKOM040F - - System PP-H System PP-H PP-H 40 32 10 119 30 100 18 180 80 14 4 1005
DKOM050F - - System PP-H System PP-H PP-H 50 40 10 149 35 110 18 200 120 16 4 1771
DKOM063F - - System PP-H System PP-H PP-H 63 50 10 172 46 125 18 230 120 16 4 2453
DKOM075F - - System PP-H System PP-H PP-H 75 65 10 172 46 145 18 290 120 21 4 2997

PTFE

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 F f H H1 Sp U Masa
g/szt.
DKOM063P - - System PP-H System PP-H PP-H 63 50 10 172 46 125 18 230 120 16 4 2453
DKOM075P - - System PP-H System PP-H PP-H 75 65 10 172 46 145 18 290 120 21 4 2997
DKOM020P - - System PP-H System PP-H PP-H 20 15 10 102 25 65 14 130 80 13,5 4 817
DKOM025P - - System PP-H System PP-H PP-H 25 20 10 105 30 75 14 150 80 13,5 4 850
DKOM032P - - System PP-H System PP-H PP-H 32 25 10 114 33 85 14 160 80 13,5 4 892
DKOM040P - - System PP-H System PP-H PP-H 40 32 10 119 30 100 18 180 80 14 4 1005
DKOM050P - - System PP-H System PP-H PP-H 50 40 10 149 35 110 18 200 120 16 4 1771
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
  • reduction in the tightening torque of the screws fixing the actuator to the valve body
  • reduced mechanical stress on all valve components (actuator, body and diaphragm)
  • easy to clean valve interior
  • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
  • operating torque reduction
