DKLDV - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®

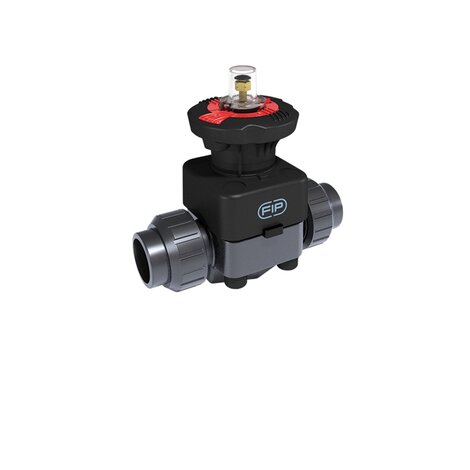

Zawór membranowy DIALOCK® z końcówkami nyplowymi do wklejenia z regulowanym ogranicznikiem przepływu
Zawory membranowe DIALOCK® szczególnie nadają się do zamykania i regulowania przepływu abrazyjnych i zanieczyszczonych cieczy. Nowa geometria wewnętrzna korpusu optymalizuje dynamikę płynu zwiększając przepływ i gwarantując optymalną liniowość krzywej regulacji. Zawory DK są wyjątkowo kompaktowe i bardzo lekkie. Innowacyjne pokrętło jest wyposażone w opatentowany ergonomiczny system blokowania, który pozwala wyregulować i zablokować zawór w dowolnej pozycji.
Główne cechy:
- High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
- Customisation plate: the customisation lets you identify the valve on the system according to specific needs
- DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
- Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
- Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
- New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
- Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
- Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
EPDM

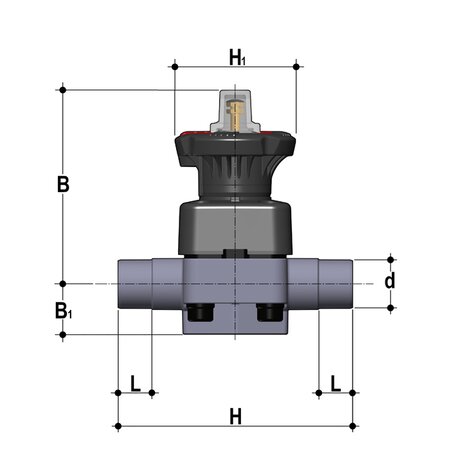

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | H | H1 | L | product.detail.attribute.Lg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DKLDV020E | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 10 | 115 | 25 | 124 | 80 | 16 | 490 |
| DKLDV025E | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 10 | 118 | 30 | 144 | 80 | 19 | 512 |
| DKLDV032E | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 10 | 127 | 33 | 154 | 80 | 22 | 712 |
| DKLDV040E | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 10 | 132 | 30 | 174 | 80 | 26 | 756 |
| DKLDV050E | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 10 | 175 | 35 | 194 | 120 | 31 | 1600 |
| DKLDV063E | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 10 | 200 | 46 | 224 | 120 | 38 | 2314 |
| DKLDV075E | - | - | System PVC-U | System PVC-U | PVC-U | 75 | 65 | 10 | 200 | 46 | 284 | 120 | 44 | 2425 |
FKM
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | H | H1 | L | product.detail.attribute.Lg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DKLDV020F | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 10 | 115 | 25 | 124 | 80 | 16 | 490 |
| DKLDV025F | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 10 | 118 | 30 | 144 | 80 | 19 | 512 |
| DKLDV032F | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 10 | 127 | 33 | 154 | 80 | 22 | 712 |
| DKLDV040F | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 10 | 132 | 30 | 174 | 80 | 26 | 756 |
| DKLDV050F | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 10 | 175 | 35 | 194 | 120 | 31 | 1600 |
| DKLDV063F | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 10 | 200 | 46 | 224 | 120 | 38 | 2314 |
| DKLDV075F | - | - | System PVC-U | System PVC-U | PVC-U | 75 | 65 | 10 | 200 | 46 | 284 | 120 | 44 | 2425 |
PTFE
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | DN | PN | B | B1 | H | H1 | L | product.detail.attribute.Lg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DKLDV020P | - | - | System PVC-U | System PVC-U | PVC-U | 20 | 15 | 10 | 115 | 25 | 124 | 80 | 16 | 490 |
| DKLDV025P | - | - | System PVC-U | System PVC-U | PVC-U | 25 | 20 | 10 | 118 | 30 | 144 | 80 | 19 | 512 |
| DKLDV032P | - | - | System PVC-U | System PVC-U | PVC-U | 32 | 25 | 10 | 127 | 33 | 154 | 80 | 22 | 712 |
| DKLDV040P | - | - | System PVC-U | System PVC-U | PVC-U | 40 | 32 | 10 | 132 | 30 | 174 | 80 | 26 | 756 |
| DKLDV050P | - | - | System PVC-U | System PVC-U | PVC-U | 50 | 40 | 10 | 175 | 35 | 194 | 120 | 31 | 1600 |
| DKLDV063P | - | - | System PVC-U | System PVC-U | PVC-U | 63 | 50 | 10 | 200 | 46 | 224 | 120 | 38 | 2314 |
| DKLDV075P | - | - | System PVC-U | System PVC-U | PVC-U | 75 | 65 | 10 | 200 | 46 | 284 | 120 | 44 | 2425 |
- Connection system for solvent weld, threaded and flanged joints
- Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
- Internal components in metal, totally isolated from the fluid and external environment
- Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
- Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
- Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
- CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
- reduction in the tightening torque of the screws fixing the actuator to the valve body
- reduced mechanical stress on all valve components (actuator, body and diaphragm)
- easy to clean valve interior
- low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
- operating torque reduction
