DKDM - ZAWÓR MEMBRANOWY 2-DROŻNY DIALOCK®

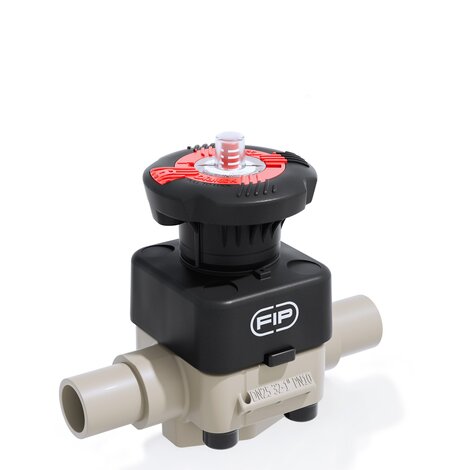

Zawór membranowy DIALOCK® z końcówkami nyplowymi do zgrzewania mufowego
Zawory membranowe DIALOCK® szczególnie nadają się do zamykania i regulowania przepływu abrazyjnych i zanieczyszczonych cieczy. Nowa geometria wewnętrzna korpusu optymalizuje dynamikę płynu zwiększając przepływ i gwarantując optymalną liniowość krzywej regulacji. Zawory DK są wyjątkowo kompaktowe i bardzo lekkie. Innowacyjne pokrętło jest wyposażone w opatentowany ergonomiczny system blokowania, który pozwala wyregulować i zablokować zawór w dowolnej pozycji.

product.detail.headline.features:

  • High visibility graduated optical position indicator protected by a transparent cap with seal O-Ring
  • Customisation plate: the customisation lets you identify the valve on the system according to specific needs
  • DIALOCK® SYSTEM: innovative handwheel with a patented immediate and ergonomic operating locking device that allows it to be adjusted and locked in over 300 positions
  • Handwheel and bonnet in high mechanical strength and chemically resistant PP-GR, providing full protection by isolating all internal metal parts from contact with external agents
  • Floating pin connection between the control screw and diaphragm to prevent concentrated loads, improve the seal and extend its lifetime
  • New design of valve body interior: substantially increased flow coefficient and reduced pressure drop. The degree of efficiency reached has also enabled the size and weight of the valve to be reduced
  • Adjustment linearity: the internal profiles of the valve also greatly improve its characteristic curve, resulting in extremely sensitive and precise adjustment along the entire stroke of the shutter
  • Valve anchoring bracket integrated in the body, with threaded metal inserts allowing simple panel or wall mounting using the PMDK mounting plate (supplied as an accessory)
Wróć do listy produktów

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 H product.detail.attribute.H[5:1] L Masa
g/szt.
DKDM020E - - System PP-H System PP-H PP-H 20 15 10 102 25 124 80 16 430
DKDM025E - - System PP-H System PP-H PP-H 25 20 10 105 30 144 80 19 445
DKDM032E - - System PP-H System PP-H PP-H 32 25 10 114 33 154 80 22 620
DKDM040E - - System PP-H System PP-H PP-H 40 32 10 119 30 174 80 26 650
DKDM050E - - System PP-H System PP-H PP-H 50 40 10 149 35 194 120 31 1380
DKDM063E - - System PP-H System PP-H PP-H 63 50 10 172 46 224 120 38 2136
DKDM075E - - System PP-H System PP-H PP-H 75 65 10 172 46 284 120 44 2225

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 H product.detail.attribute.H[5:1] L Masa
g/szt.
DKDM020E0SF - - System PP-H System PP-H PP-H 20 15 10 102 25 124 80 16 430
DKDM025E0SF - - System PP-H System PP-H PP-H 25 20 10 105 30 144 80 19 445
DKDM032E0SF - - System PP-H System PP-H PP-H 32 25 10 114 33 154 80 22 620
DKDM040E0SF - - System PP-H System PP-H PP-H 40 32 10 119 30 174 80 26 650
DKDM050E0SF - - System PP-H System PP-H PP-H 50 40 10 149 35 194 120 31 1380
DKDM063E0SF - - System PP-H System PP-H PP-H 63 50 10 172 46 224 120 38 2136
DKDM075E0SF - - System PP-H System PP-H PP-H 75 65 10 172 46 284 120 44 2225

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 H product.detail.attribute.H[5:1] L Masa
g/szt.
DKDM020F - - System PP-H System PP-H PP-H 20 15 10 102 25 124 80 16 430
DKDM025F - - System PP-H System PP-H PP-H 25 20 10 105 30 144 80 19 445
DKDM032F - - System PP-H System PP-H PP-H 32 25 10 114 33 154 80 22 620
DKDM040F - - System PP-H System PP-H PP-H 40 32 10 119 30 174 80 26 650
DKDM050F - - System PP-H System PP-H PP-H 50 40 10 149 35 194 120 31 1380
DKDM063F - - System PP-H System PP-H PP-H 63 50 10 172 46 224 120 38 2136
DKDM075F - - System PP-H System PP-H PP-H 75 65 10 172 46 284 120 44 2225

PTFE

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 H product.detail.attribute.H[5:1] L Masa
g/szt.
DKDM020P - - System PP-H System PP-H PP-H 20 15 10 102 25 124 80 16 430
DKDM025P - - System PP-H System PP-H PP-H 25 20 10 105 30 144 80 19 445
DKDM032P - - System PP-H System PP-H PP-H 32 25 10 114 33 154 80 22 620
DKDM040P - - System PP-H System PP-H PP-H 40 32 10 119 30 174 80 26 650
DKDM050P - - System PP-H System PP-H PP-H 50 40 10 149 35 194 120 31 1380
DKDM063P - - System PP-H System PP-H PP-H 63 50 10 172 46 224 120 38 2136
DKDM075P - - System PP-H System PP-H PP-H 75 65 10 172 46 284 120 44 2225

PTFE

Indeks - Wymiar Kategoria produktu System Materiał d DN PN B B1 H product.detail.attribute.H[5:1] L Masa
g/szt.
DKDM020P0SF - - System PP-H System PP-H PP-H 20 15 10 102 25 124 80 16 430
DKDM025P0SF - - System PP-H System PP-H PP-H 25 20 10 105 30 144 80 19 445
DKDM032P0SF - - System PP-H System PP-H PP-H 32 25 10 114 33 154 80 22 620
DKDM040P0SF - - System PP-H System PP-H PP-H 40 32 10 119 30 174 80 26 650
DKDM050P0SF - - System PP-H System PP-H PP-H 50 40 10 149 35 194 120 31 1380
DKDM063P0SF - - System PP-H System PP-H PP-H 63 50 10 172 46 224 120 38 2136
DKDM075P0SF - - System PP-H System PP-H PP-H 75 65 10 172 46 284 120 44 2225
  • Connection system for solvent weld, threaded and flanged joints
  • Optimised fluid dynamic design: maximum output flow rate thanks to the optimised efficiency of the fluid dynamics that characterise the new internal geometry of the body
  • Internal components in metal, totally isolated from the fluid and external environment
  • Modularity of the range: only 2 handwheel and 4 diaphragm and bonnet sizes for 7 different valve sizes
  • Non-rising handwheel that stays at the same height during rotation, equipped with a graduated optical indicator protected by a transparent PVC cap with seal O-Ring
  • Bonnet fastening screws in stainless steel protected against the external environment by PE plugs. Absence of metal parts exposed to the external environment to prevent any risk of corrosion.
  • CDSA (Circular Diaphragm Sealing Angle) system that, thanks to the uniform distribution of shutter pressure on the diaphragm seal, offers the following advantages:
  • reduction in the tightening torque of the screws fixing the actuator to the valve body
  • reduced mechanical stress on all valve components (actuator, body and diaphragm)
  • easy to clean valve interior
  • low risk of the accumulation of deposits, contamination or damage to the diaphragm due to crystallisation
  • operating torque reduction
