DIV
ZŁĄCZKI DO KLEJENIA - REDUKCYJNE

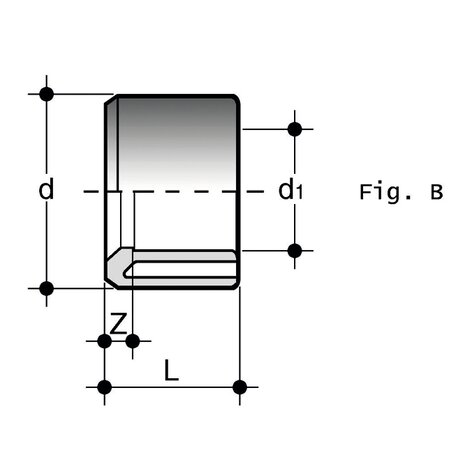

Redukcja krótka nyplowo-mufowa (fig. B)
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem, łączonych za pomocą klejenia przy użyciu odpowiedniego kleju i czyściwa.
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d x d1 | PN | L | Z | Masa g/szt. |
Typ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1RRC121O00 | - | - | System PVC-U | System PVC-U | PVC-U | *200 x 160 | 16 | 106 | 20 | 1310 | - |
| DIV040020 | - | - | System PVC-U | System PVC-U | PVC-U | 40 x 20 | 16 | 26 | 9 | 25 | I |
| DIV040025 | - | - | System PVC-U | System PVC-U | PVC-U | 40 x 25 | 16 | 26 | 7 | 24 | I |
| DIV050032 | - | - | System PVC-U | System PVC-U | PVC-U | 50 x 32 | 16 | 31 | 8,5 | 35 | I |
| DIV063032 | - | - | System PVC-U | System PVC-U | PVC-U | 63 x 32 | 16 | 38 | 16 | 73 | I |
| DIV063040 | - | - | System PVC-U | System PVC-U | PVC-U | 63 x 40 | 16 | 38 | 11,5 | 75 | I |
| DIV075050 | - | - | System PVC-U | System PVC-U | PVC-U | 75 x 50 | 16 | 44 | 13 | 120 | I |
| DIV090050 | - | - | System PVC-U | System PVC-U | PVC-U | 90 x 50 | 16 | 51 | 20 | 200 | I |
| DIV090063 | - | - | System PVC-U | System PVC-U | PVC-U | 90 x 63 | 16 | 51 | 13 | 210 | I |
| DIV110063 | - | - | System PVC-U | System PVC-U | PVC-U | 110 x 63 | 16 | 61 | 23 | 340 | I |
| DIV110075 | - | - | System PVC-U | System PVC-U | PVC-U | 110 x 75 | 16 | 61 | 17 | 360 | I |
| DIV140090 | - | - | System PVC-U | System PVC-U | PVC-U | 140 x 90 | 16 | 76 | 25 | 730 | I |
| DIV160090 | - | - | System PVC-U | System PVC-U | PVC-U | 160 x 90 | 16 | 86 | 35 | 1040 | I |
| DIV160110 | - | - | System PVC-U | System PVC-U | PVC-U | 160 x 110 | 16 | 86 | 24 | 945 | I |
| DIV180160 | - | - | System PVC-U | System PVC-U | PVC-U | - | - | - | - | - | - |
| DIV200180 | - | - | System PVC-U | System PVC-U | PVC-U | *200 x 180 | 10 | 106 | 10 | 870 | - |
| DIV225160 | - | - | System PVC-U | System PVC-U | PVC-U | 225 x 160 | 16 | 119 | 33 | 1840 | - |
| DIV250160 | - | - | System PVC-U | System PVC-U | PVC-U | 250 x 160 | 10 | 132 | 45 | 3100 | - |
| DIV250180 | - | - | System PVC-U | System PVC-U | PVC-U | *250 x 180 | 10 | 132 | 36 | 3100 | - |
| DIV280200 | - | - | System PVC-U | System PVC-U | PVC-U | *250 x 200 | 10 | 146 | 40 | 4100 | - |
| DIV280225 | - | - | System PVC-U | System PVC-U | PVC-U | 280 x 225 | 10 | 147 | 27 | 4300 | - |
| DIV315200 | - | - | System PVC-U | System PVC-U | PVC-U | 315 x 200 | 10 | 165 | 58 | 8650 | - |
| DIV315225 | - | - | System PVC-U | System PVC-U | PVC-U | 315 x 225 | 10 | 165 | 45 | 8100 | - |
| DIV315250 | - | - | System PVC-U | System PVC-U | PVC-U | 315 x 250 | 10 | 165 | 33 | 5080 | - |
| DIV315280 | - | - | System PVC-U | System PVC-U | PVC-U | - | - | - | - | - | - |
