ZŁĄCZKI DO KLEJENIA - REDUKCYJNE

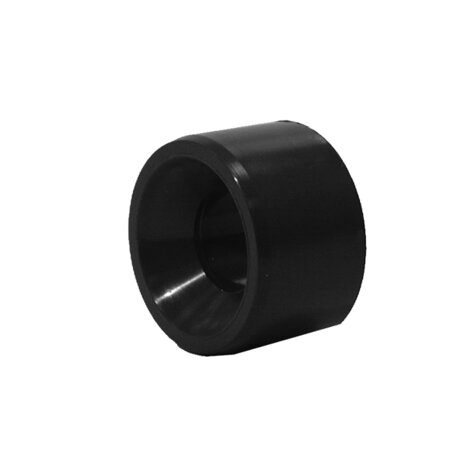

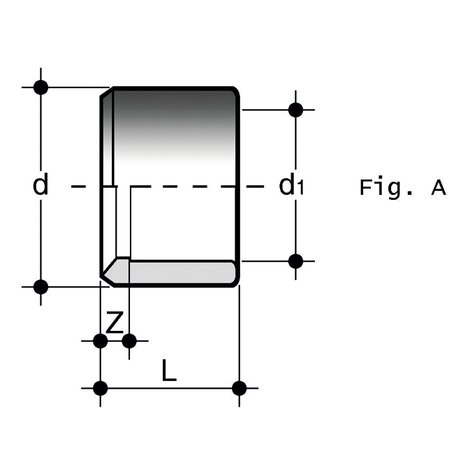

Redukcja krótka nyplowo-mufowa (fig. A)
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem, łączonych za pomocą klejenia przy użyciu odpowiedniego kleju i czyściwa.
| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d x d1 | PN | L | Z | Masa g/szt. |
Typ |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIV016012 | - | - | System PVC-U | System PVC-U | PVC-U | 16 x 12 | 16 | 14 | 2 | 1 | - |
| DIV020016 | - | - | System PVC-U | System PVC-U | PVC-U | 40 x 25 | 16 | 26 | 7 | 24 | - |
| DIV025020 | - | - | System PVC-U | System PVC-U | PVC-U | 25 x 20 | 16 | 19 | 3 | 5 | IF |
| DIV032020 | - | - | System PVC-U | System PVC-U | PVC-U | 32 x 20 | 16 | 22 | 6 | 15 | I |
| DIV032025 | - | - | System PVC-U | System PVC-U | PVC-U | 32 x 25 | 16 | 22 | 3,5 | 10 | IF |
| DIV040032 | - | - | System PVC-U | System PVC-U | PVC-U | 40 x 32 | 16 | 26 | 4 | 17 | IF |
| DIV050040 | - | - | System PVC-U | System PVC-U | PVC-U | 50 x 40 | 16 | 31 | 5 | 32 | IF |
| DIV063050 | - | - | System PVC-U | System PVC-U | PVC-U | 63 x 50 | 16 | 38 | 7 | 65 | IF |
| DIV075063 | - | - | System PVC-U | System PVC-U | PVC-U | 75 x 63 | 16 | 44 | 6 | 85 | IF |
| DIV090075 | - | - | System PVC-U | System PVC-U | PVC-U | 90 x 75 | 16 | 51 | 7 | 150 | IF |
| DIV110090 | - | - | System PVC-U | System PVC-U | PVC-U | 110 x 90 | 16 | 61 | 9 | 270 | IF |
| DIV125110 | - | - | System PVC-U | System PVC-U | PVC-U | 125 x 110 | 16 | 69 | 8 | 285 | IF |
| DIV140110 | - | - | System PVC-U | System PVC-U | PVC-U | 140 x 110 | 16 | 76 | 17 | 645 | I |
| DIV140125 | - | - | System PVC-U | System PVC-U | PVC-U | 140 x 125 | 16 | 76 | 9,5 | 350 | IF |
| DIV160140 | - | - | System PVC-U | System PVC-U | PVC-U | 160 x 140 | 16 | 86 | 10 | 565 | IF |
| DIV225200 | - | - | System PVC-U | System PVC-U | PVC-U | *225 x 200 | 16 | 119 | 13 | 1380 | - |
| DIV250200 | - | - | System PVC-U | System PVC-U | PVC-U | 250 x 200 | 10 | 132 | 25 | 3500 | - |
| DIV250225 | - | - | System PVC-U | System PVC-U | PVC-U | 250 x 225 | 10 | 132 | 12 | 2100 | - |
| DIV280250 | - | - | System PVC-U | System PVC-U | PVC-U | *280 x 250 | 10 | 147 | 15 | 2500 | - |
