Data specific for pH-ORP.200

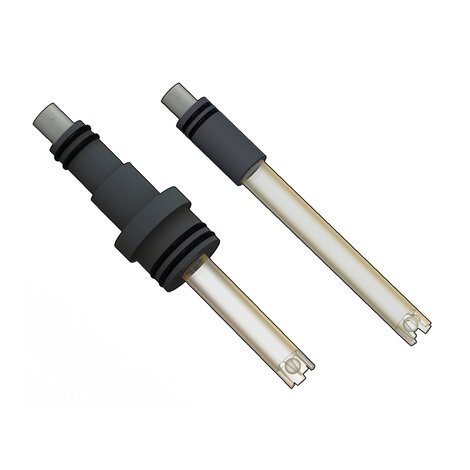

EPOXY BODY BULB ELECTRODE
Bulb ORP Electrodes with epoxy body
This FLS line of electrodes
has been designed to
provide a cost effective multipurpose
solution for in line or
submersion measurement of
pH and ORP in a wide range of
applications.
Single and double junction
versions are available as well
as models with or without quick
disconnect top caps. Moreover
for automatic temperature
compensation function (ATC)
a pH option with temperature
sensor integrated is available.
These epoxy body electrodes
can stand several applications
thanks to the high chemical
resistance of the material. A
simple and reusable gland
can be used for economic
electrode in-line mounting
while a ½” or ¾” coupler with
a pipe extension is enough
for submersion mounting. A
special version is dedicated to
installation on FLS T fitting as
well as to FLS clamp saddle
adding just a nut.
| Indeks | - | Wymiar | Kategoria produktu | System | product.detail.attribute.Corpo | product.detail.attribute.Materiale/tipo di giunzione | product.detail.attribute.Soluzione di riferimento | product.detail.attribute.Superficie di rilevamento | product.detail.attribute.O-ring | product.detail.attribute.Collegamento | product.detail.attribute.Max pressione di esercizio a temperatura d'esercizio |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ORP200C | - | - | Automatyka | Automatyka | resina epossidica | nylon/S.J. | KCl 3,5 M | platino | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| ORP222CD | - | - | Automatyka | Automatyka | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | platino | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| ORP223CD | - | - | Automatyka | Automatyka | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | platino | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH200C | - | - | Automatyka | Automatyka | resina epossidica | nylon/S.J. | KCl 3,5 M | membrana in vetro di pH | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH222CD | - | - | Automatyka | Automatyka | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH222CDTC | - | - | Automatyka | Automatyka | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | - | 5 m (16,5 piedi) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
| PH223CD | - | - | Automatyka | Automatyka | resina epossidica | nylon/D.J. | KCl 3,5 M / KNO3 sat. | membrana in vetro di pH | silicone | Twist-Lock (BNC) | 7 bar a 25 °C /$1 bar a 65 °C$(100 psi a 77 °F/ 14,5 psi a 149 °F) |
- APPLICATIONS • Water treatment • Neutralization systems • Water quality monitoring • Swimming Pools and spas • Aquaculture • Agriculture and fertilizing systems • Process control MAIN FEATURES • Epoxy body • Single or double junction technology • Large gel reference volume • Easy and quick installation system • Outline cable or BNC connection • Version with temperature sensor combined • Special versions on request • Low cost fittings
