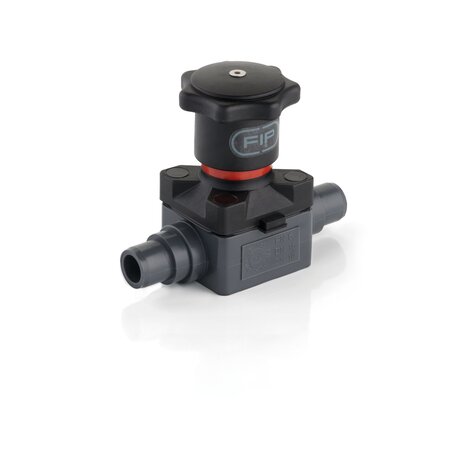

CMDV - ZAWÓR MEMBRANOWY KOMPAKTOWY

Zawór membranowy kompaktowy z końcówkami nyplowymi do wklejenia, metryczny
CM to ręcznie sterowany zawór membranowy o zredukowanych wymiarach i szczególnie zwartej konstrukcji, idealny do stosowania w ograniczonych przestrzeniach.

product.detail.headline.features:

  • Handwheel in PA-GR, completely sealed, high mechanical strength with ergonomic grip for optimum manageability
  • Integrated adjustable torque limiter designed to prevent excessive compression of the diaphragm and always guarantee a minimum fluid flow
  • Optical position indicator supplied as standard
  • Bonnet in PA-GR with STAINLESS steel nuts fully protected by plastic plugs to eliminate zones where impurities may accumulate. Internal circular and symmetrical diaphragm sealing area
  • STAINLESS steel bolts, can also be inserted from above
  • Threaded metal inserts for anchoring the valve
Wróć do listy produktów

EPDM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN product.detail.attribute.B max B1 H product.detail.attribute.H[5:1] product.detail.attribute.h product.detail.attribute.I product.detail.attribute.J L
CMDV020E - - System PVC-U System PVC-U PVC-U 20 15 6 86 15 124 58,5 8 35 M[5:5] 17

FKM

Indeks - Wymiar Kategoria produktu System Materiał d DN PN product.detail.attribute.B max B1 H product.detail.attribute.H[5:1] product.detail.attribute.h product.detail.attribute.I product.detail.attribute.J L
CMDV020F - - System PVC-U System PVC-U PVC-U 20 15 6 86 15 124 58,5 8 35 M[5:5] 17

PTFE

Indeks - Wymiar Kategoria produktu System Materiał d DN PN product.detail.attribute.B max B1 H product.detail.attribute.H[5:1] product.detail.attribute.h product.detail.attribute.I product.detail.attribute.J L
CMDV020P - - System PVC-U System PVC-U PVC-U 20 15 6 86 15 124 58,5 8 35 M[5:5] 17
  • Connection system for solvent weld and threaded joints
  • Extremely compact construction
  • Internal operating components in metal totally isolated from the conveyed fluid
  • Valve stem in STAINLESS steel
  • Compressor with floating diaphragm support
  • Easy to replace diaphragm seal
  • Corrosion-proof internal components
  • CDSA (Circular Diaphragm Sealing Angle) system offering the following advantages:
  • uniform distribution of shutter pressure on the diaphragm seal
  • reduction in the tightening torque of the crews fixing the actuator to the valve body
  • reduced mechanical stress on all valve components (actuator, body and diaphragm)
  • easy to clean valve interior
  • low risk of the accumulation of eposits, contamination or damage to the diaphragm due to crystallisation
  • operating torque reduction
