CIF
ZŁĄCZKI DO ZGRZEWANIA MUFOWEGO - ZAŚLEPKI

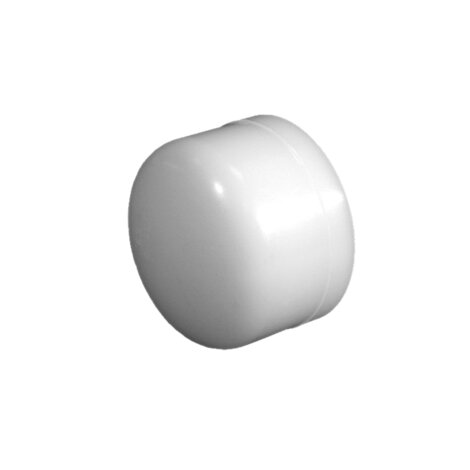

Zaślepka do zgrzewania mufowego
System złączek zaprojektowanych do przesyłu cieczy pod ciśnieniem łączonych metodą zgrzewania mufowego.

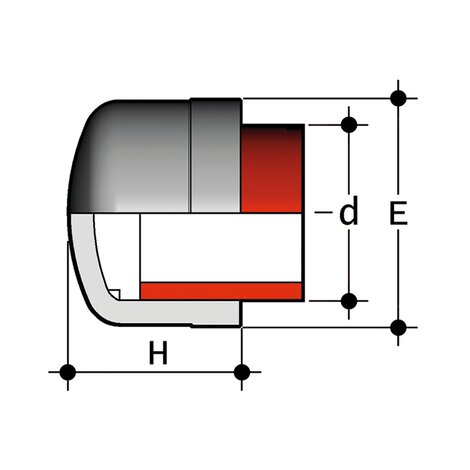

| Indeks | - | Wymiar | Kategoria produktu | System | Materiał | d | PN | H | E | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|
| CIF016 | - | - | System PVDF | System PVDF | PVDF | *16 | 16 | 20 | 23 | 7 |
| CIF020 | - | - | System PVDF | System PVDF | PVDF | 20 | 16 | 23 | 28 | 11 |
| CIF025 | - | - | System PVDF | System PVDF | PVDF | 25 | 16 | 27 | 33 | 19 |
| CIF032 | - | - | System PVDF | System PVDF | PVDF | 32 | 16 | 31 | 41 | 32 |
| CIF040 | - | - | System PVDF | System PVDF | PVDF | 40 | 16 | 36 | 50 | 47 |
| CIF050 | - | - | System PVDF | System PVDF | PVDF | 50 | 16 | 43 | 61 | 75 |
| CIF063 | - | - | System PVDF | System PVDF | PVDF | 63 | 16 | 51 | 76 | 135 |
| CIF075 | - | - | System PVDF | System PVDF | PVDF | *75 | 16 | 58 | 90 | 215 |
| CIF090 | - | - | System PVDF | System PVDF | PVDF | *90 | 16 | 68 | 109 | 400 |
| CIF110 | - | - | System PVDF | System PVDF | PVDF | - | - | - | - | - |
