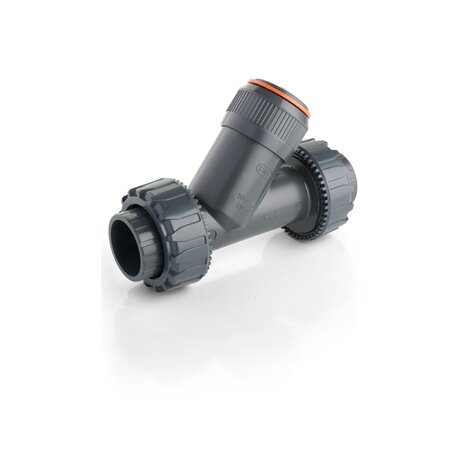

VRDV - ZAWÓR ZWROTNY KĄTOWY

Zawór zwrotny kątowy z końcówkami nyplowymi do wklejenia, metryczny
VR to zawór zwrotny kątowy z tłokiem z tworzywa, który pozwala na przepływ medium tylko w jednym kierunku.
Wróć do listy produktów

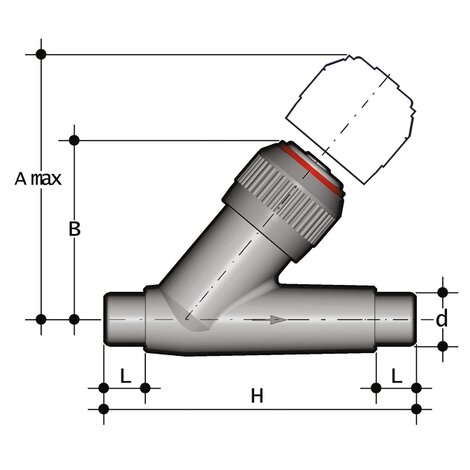

Indeks - Wymiar Kategoria produktu Materiał d DN PN Amax B H L Fig. Masa
g/szt.
VRDV016E - - Zawory ręczne PVC-U 16 10 16 125 72 114 14 A 125
VRDV020E - - Zawory ręczne PVC-U 20 15 16 125 72 124 16 A 135
VRDV025E - - Zawory ręczne PVC-U 25 20 16 145 84 144 19 A 225
VRDV032E - - Zawory ręczne PVC-U 32 25 16 165 95 154 22 A 360
VRDV040E - - Zawory ręczne PVC-U 40 32 16 190 111 174 26 A 590
VRDV050E - - Zawory ręczne PVC-U 50 40 16 210 120 194 31 A 835
VRDV063E - - Zawory ręczne PVC-U 63 50 16 240 139 224 38 A 1420
  • Connection system for solvent weld, threaded and flanged joints
  • No metal parts in contact with the fluid
  • Piston with counterweight able to work with high intensity fluid
  • Limited pressure drop. Only minimum back pressure is required for the hermetic seal
  • Valve material compatibility (PVC-U) with water conveyance, drinking water and other food substances according to current regulations
  • Can be maintained with the valve body installed
