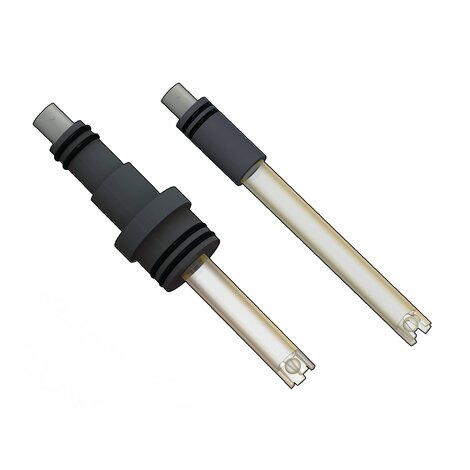

EPOXY BODY BULB ELECTRODE
Bulb ORP Electrodes with epoxy body
This FLS line of electrodes has been designed to provide a cost effective multipurpose solution for in line or submersion measurement of pH and ORP in a wide range of applications. Single and double junction versions are available as well as models with or without quick disconnect top caps. Moreover for automatic temperature compensation function (ATC) a pH option with temperature sensor integrated is available. These epoxy body electrodes can stand several applications thanks to the high chemical resistance of the material. A simple and reusable gland can be used for economic electrode in-line mounting while a Â˝â€ť or Âľâ€ť coupler with a pipe extension is enough for submersion mounting. A special version is dedicated to installation on FLS T fitting as well as to FLS clamp saddle adding just a nut.
|Indeks||-||Wymiar||Kategoria produktu||product.detail.attribute.Features||product.detail.attribute.Applications/ Operative Range||product.detail.attribute.Cable**||product.detail.attribute.Connection||product.detail.attribute.Installation||Masa
|ORP200C||-||-||Przyrządy pomiarowe i kontrolne FLS LINE||Singol junction||± 2000 mV||Not required||5m $ (16,5 ft.) Cable||EG50P $ EG75P $ MK150200 $ MIFV20X05 $ MIMC20X05||200|
|ORP222CD||-||-||Przyrządy pomiarowe i kontrolne FLS LINE||Double junction||± 2000 mV||CN 653||Twist-lock (BNC)||EG50P $ EG75P $ MIFV20X05 $ MIMC20X05||90|
|ORP223CD||-||-||Przyrządy pomiarowe i kontrolne FLS LINE||Double junction for FLS fittings||± 2000 mV||CN 653||Twist-lock (BNC)||F3.SP2.4||100|
- APPLICATIONS â€˘ Water treatment â€˘ Neutralization systems â€˘ Water quality monitoring â€˘ Swimming Pools and spas â€˘ Aquaculture â€˘ Agriculture and fertilizing systems â€˘ Process control MAIN FEATURES â€˘ Epoxy body â€˘ Single or double junction technology â€˘ Large gel reference volume â€˘ Easy and quick installation system â€˘ Outline cable or BNC connection â€˘ Version with temperature sensor combined â€˘ Special versions on request â€˘ Low cost fittings
