KOŁNIERZE - ISO-DIN

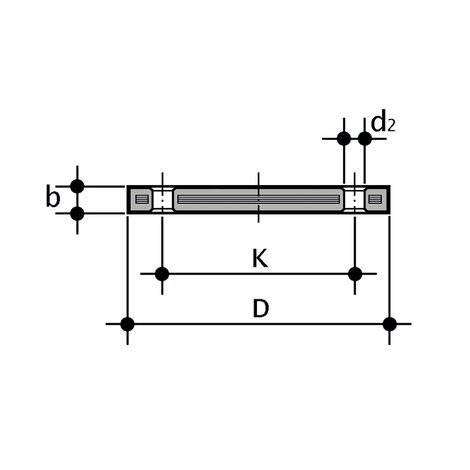

Kołnierz zaślepiający z rdzeniem stalowym, PP z powłoką FRP zg. z EN/ISO/DIN. Owiercenie: PN 10/16
Seria złączek zaprojektowanych do transportu mediów płynnych pod ciśnieniem, łączonych na zimno przy użyciu odpowiedniego kleju i środka czyszczącego.
| Indeks | - | Wymiar | Kategoria produktu | Materiał | d | DN | *PMA (bar) | b | d2 | D | K | M | n | **(Nm) | Masa g/szt. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ODBC020S | - | - | System PVC-C | PVC-C | 20 | 15 | 10 | 16 | 14 | 95 | 65 | M12 | 4 | 15 | 290 |
| ODBC025S | - | - | System PVC-C | PVC-C | 25 | 20 | 10 | 12 | 18 | 105 | 75 | M12 | 4 | 15 | 380 |
| ODBC032S | - | - | System PVC-C | PVC-C | 32 | 25 | 10 | 18 | 14 | 115 | 85 | M12 | 4 | 15 | 600 |
| ODBC040S | - | - | System PVC-C | PVC-C | 40 | 32 | 10 | 17 | 18 | 140 | 100 | M16 | 4 | 25 | 830 |
| ODBC050S | - | - | System PVC-C | PVC-C | 50 | 40 | 10 | 18 | 18 | 150 | 110 | M16 | 4 | 35 | 1105 |
| ODBC063S | - | - | System PVC-C | PVC-C | 63 | 50 | 10 | 18 | 18 | 165 | 125 | M16 | 4 | 35 | 1308 |
| ODBC075S | - | - | System PVC-C | PVC-C | 75 | 65 | 10 | 18 | 18 | 185 | 145 | M16 | 4 | 40 | 1580 |
| ODBC090S | - | - | System PVC-C | PVC-C | 90 | 80 | 10 | 20 | 18 | 200 | 160 | M16 | 8 | 40 | 2244 |
| ODBC110S | - | - | System PVC-C | PVC-C | 110 | 100 | 10 | 20 | 18 | 220 | 180 | M16 | 8 | 45 | 2829 |
| ODBC160S | - | - | System PVC-C | PVC-C | 160 | 150 | 10 | 22 | 22 | 285 | 240 | M20 | 8 | 60 | 7181 |
| ODBC200S | - | - | System PVC-C | PVC-C | 200/225 | 200 | 10 | 24 | 22 | 340 | 295 | M20 | 8 | 10580 | - |
